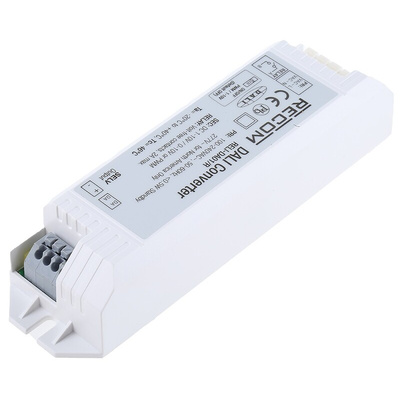

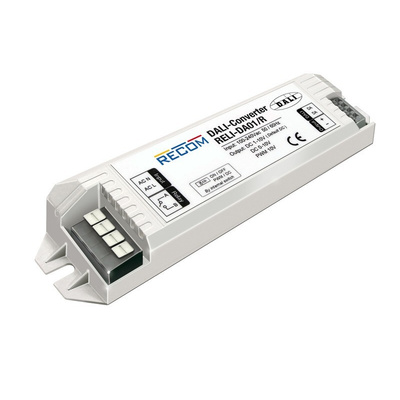

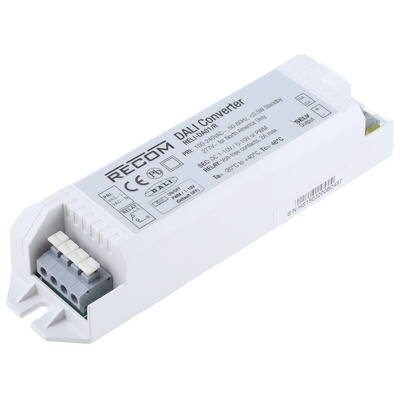

Recom RELI-DA01/R Dali to Analogue Interface for use with RECOM AC/DC LED Drivers 90 → 264 V ac 0 → 10V

Recom Signal Converter for DALI Controlled LED Lighting

From Recom the DALI signal converter RELI-DA01/R, can be used to digitally control lighting, whether that be to turn lighting on/ off or to dim the lighting in a room or in an office. It is the essential link between the dimmable LED drivers and the DALI components.

This happens by the DALI component such as switchers/ dimmers and sensors converting the digital signal from the converter to an analogue output, and in turn the output controlling the LED drivers which control the lighting at the desired setting.

The output is selectable between 0-10V and 1-10V or PWM (1) and is compatible with all Recom dimmable LED drivers. The output can control up to 6 LED drivers, which means by using one DALI address all lighting can be controlled. A built-in relay can also be used which can switch off the LED drivers under software control, to give zero no-load consumption, dependent upon your requirements.

Features and Benefits

• Compliant with DALI standard
• Easy to install – screw less connectors
• Built in relay to turn on/off completely (zero standby current)
• Over voltage and short circuit protection
• Dimming output for PWM / DC 0-10V / DC 1 – 10V
• IR Rating IP20

Standards

IEC 62386-102
IEC 62386-206

Recom LED Drivers

RELI-DA01/R DALI-Converter AC/DC Data Sheet
