RS PRO IP20 Blue Industrial Power Connector Adapter, Rated At 16.0A, 250.0 V, Адаптер

IEC309 Adaptor Connectors, Country Specific

A range of IEC309 connectors that adapt to country specific connectors such as Newzealand and Germany, IP20 rated with a voltage rating of 250V.

RS PRO IP20 Blue Industrial Power Connector Adapter, Rated At 16.0 A, 250.0 V

Plugs and sockets can vary from country to country, which is why RS PRO offer a range of heavy-duty adapters that make it possible to connect European model plugs into IEC 309-type sockets. Use this two-pin plus earth one-way power connector adapter in manufacturing plants and other heavy-duty environments whenever you need to power French-made equipment.

This power connector conforms to European Standard EN 50250 (1998) for conversion adapters suitable for general industrial purposes as well as IEC 309 – the British standard for industrial-grade plugs and sockets. It has a voltage rating of 250 V and an amperage rating of 16 A.

As part of the RS PRO range, this adapter has been tried and tested to make sure it's safe and reliable. It conforms to the RoHS directive on minimal hazardous substances and the standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on safe electrostatic discharge.

Features and Benefits

• Industrial power connector adapter

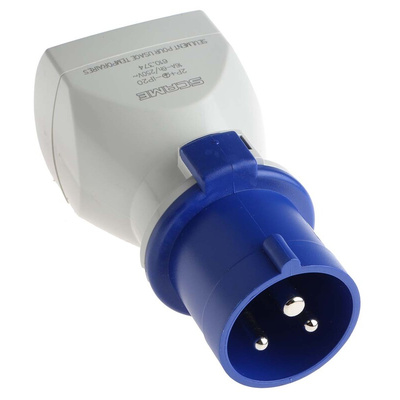

• Input plug is 2-pin + earth IEC309 round-pin plug

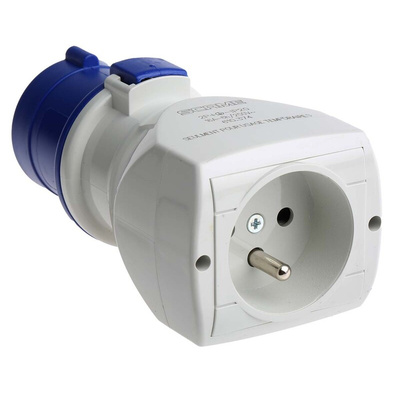

• Output socket is 2-pin + earth 16 A French socket
• IP20 rated as safe to touch with your fingers
• Colour-coded as blue
• Voltage rating of 250 V
• Current rating of 16 A
• Complies with the EU's Low Voltage Directive 2006/95/CE

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
