RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 24 V dc Voltage, Разъем

RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector, 24 V dc Voltage

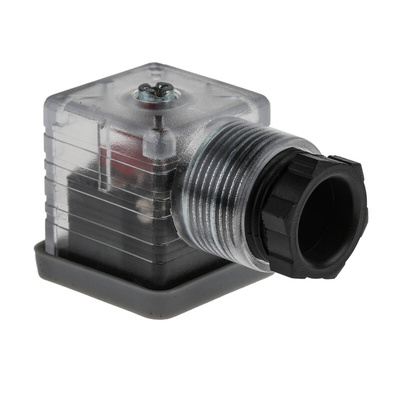

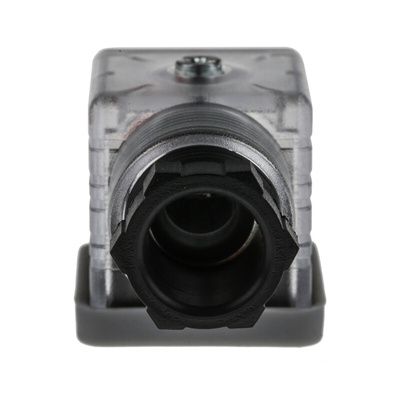

This 3-pole plus Earth female solenoid valve connector from RS PRO functions as a protective enclosure to use with solenoid valves or pressure switches. Commonly used in fluid power pneumatic and hydraulic systems, this DIN 43650 Form A-type connector is compatible with a range of components.

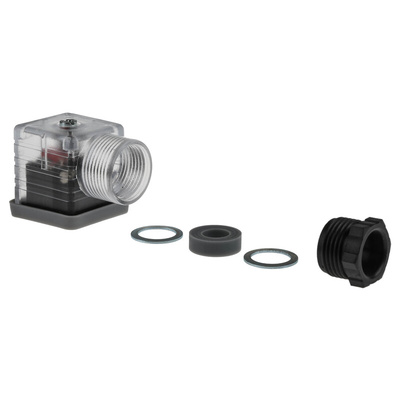

This type A screw-mount socket has a gland size of PG11. Made from durable transparent polycarbonate with a silicone gasket for a tight seal, it operates at temperatures between 0˚C and +90˚C. An indicator light flags any problems, saving time when troubleshooting. It's voltage rated at 24 V dc, amp rated at 10 A and has tin-plated contacts with a maximum resistance of 20 mΩ.

This connector's been tested to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains only minimal hazardous substances (RoHS). It's also been high-voltage breakdown tested to 2,000 V ac for one minute.

Features and Benefits

• DIN 43650 A female solenoid valve connector
• 3-pole + Earth
• Indicator light shows power relay
• Screw-mount socket type A, gland size PG11
• Voltage rating of 24 V dc
• Current rating of 10 A
• Contact resistance of 20 mΩ

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
