RS PRO 2P+E DIN 43650 B, Female Solenoid Valve Connector with Indicator Light, 24 V dc Voltage, Разъем

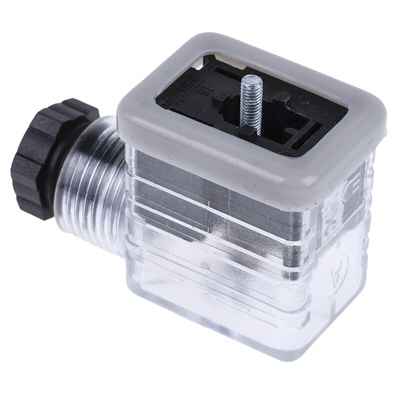

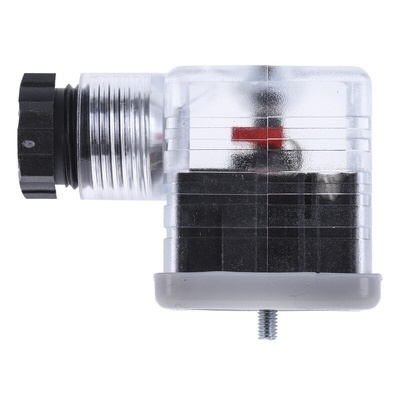

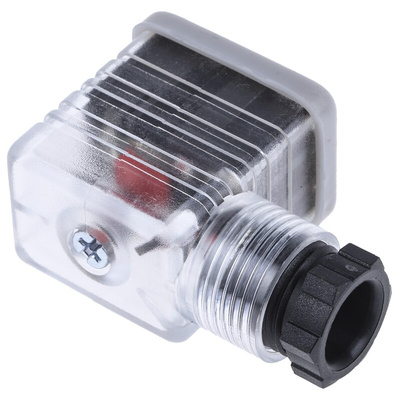

RS PRO 2P+E DIN 43650 B, Female Solenoid Valve Connector, 24 V dc Voltage

Need a strong, protective enclosure for solenoid valves or pressure switches? Look no further than this 2-pole plus Earth female solenoid valve connector from the RS PRO range. The DIN 43650 Form B-type connector is compatible with various components, useful in applications from equipment manufacture to signal transmission in magnetic valves.

The cable-mount socket is type B with a gland size of PG9. Formed from robust transparent polycarbonate with a silicone gasket, the connector protects its valve from environmental stresses. An indicator light shows it's relaying power, enabling you to identify issues within the system quickly. With a voltage rating of 24 V dc and amp rating of 10 A, the connector will operate from 0˚C to +90˚C.

Tested to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007), it's also been certified by the RoHS as containing minimal hazardous substances.

Features and Benefits

• DIN 43650 B solenoid valve connector
• 2-pole + Earth
• Indicator light shows when the connector is relaying power
• Cable-mount socket type B
• Gland size PG9
• Screw termination method
• Voltage rating of 24 V dc
• Current rating of 10 A
• High-voltage breakdown tested at 2,000 V ac/one minute
• Insulation resistance of 100 mΩ/one minute
• Operating temperature range 0˚C to +90˚C
