RS PRO 3P+E DIN 43650 C, Female Solenoid Valve Connector, No, 250 V ac Voltage, Разъем

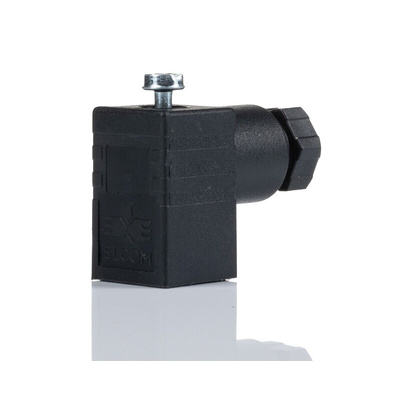

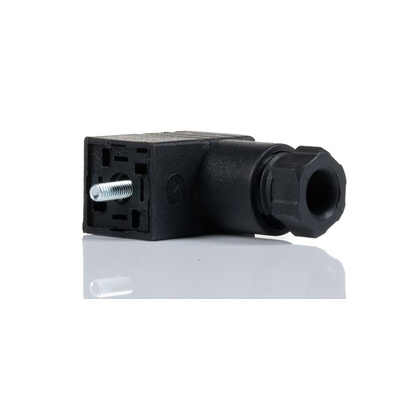

RS PRO DIN Solenoid Valve Connector Socket (Type C)

A hardwearing Type C DIN connector socket secured in place using a simple screw mount fastener and designed for cable mounting. This solenoid valve connector socket as a Type C is the smallest type of DIN valve connector and is sometimes referred to as a sub-micro or micro DIN.
Constructed from glass filled Nylon 6 the DIN socket connector is tough and impact resistant and features Tin plated Copper alloy parts for excellent conductivity. Fitted with PG-7 gland for a secure grip on the cable, a Nitrile Silicone gasket and screw terminals for a reliable and secure DIN solenoid valve socket that takes minutes to install.

Features and Benefits

• Type C socket


• PG-7 cable gland


• Glass filled Nylon 6 construction


• Nitrile Silicone gasket


• Voltage rated to 250Vac


• Current rating of 6A


• Contact resistance 20mΩ max.


• Insulation resistance of 100 MΩ for 1 minute


• Operating temperature range of 0 to 90°C


• HV breakdown test 2KV AC for 1 minute


• Non-illuminated

Standards and Approvals: DIN 43650 C
