RS PRO 2P+E DIN 43650, Male Solenoid Valve Connector, N, 250 V ac Voltage, Разъем

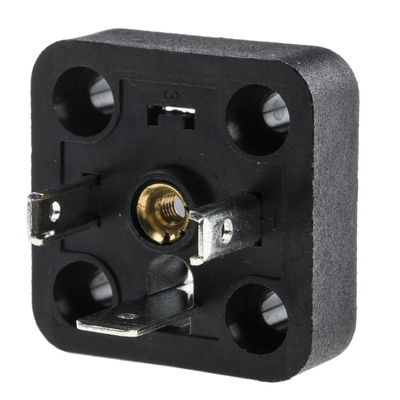

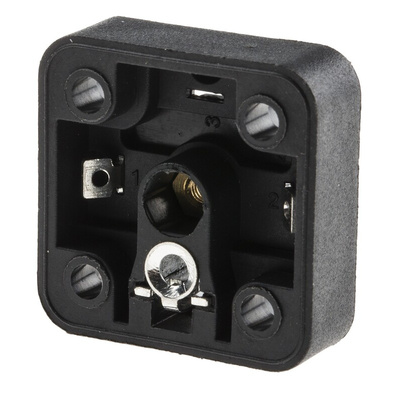

RS PRO DIN Connector Flat Plug Male Solenoid Valve

A hardwearing flat plug for the linking of solenoid valves to industrial equipment and processes.
Easily fitted using the screw mounting and utilising a secure solder termination
Constructed with a robust Polyamide body the solenoid valve plug is tough, impact resistant and features Tin plated Copper alloy parts for high levels of conductivity and easy soldering.
Easily fitted using the screw mounting and utilising a secure solder termination the DIN flat plug is tough, reliable and takes minutes to install.

Features and Benefits

• Flat plug


• Solder termination


• Screw mounting


• Voltage rated to 250 Vac


• Current rating of 6A


• Copper alloy contacts with a Tin plating


• Insulation resistance of 100 MΩ for 1 minute


• Contact resistance 20 mΩ max


• Polyamide construction


• Nitrile Silicone gasket


• Insulation resistance of 100 MΩ for 1 minute


• Operating temperature range of 0 to 90°C


• HV breakdown test 2KV AC for 1 minute

Standards and Approvals: DIN 43650, ISO 4400

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

Standards

DIN-43650, ISO 4400

Approvals

VDE
