RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V ac Voltage, Разъем

DIN Connector Sockets, 2/3 Pole + Earth, Type A

A selection of 2 and 3 pole and earth, non-illuminated DIN connector sockets rated at 250Vac. These screw mount sockets are Type A, available with PG9 and PG11 glands and are of Nylon-6 GF construction, with a Nitrile/silicon gasket.

Features and Benefits:
• 2 and 3 Pole + earth versions
• Type A socket Type
• Gland size PG-9 and PG-11 variants
• Contact resistance 20mΩ max.
• Permissible Temperature 0 to 90° C
• HV breakdown test 2KV AC for 1 minute

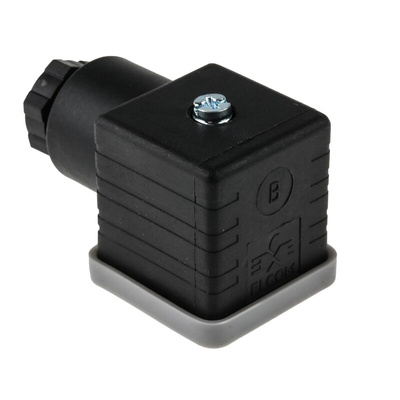

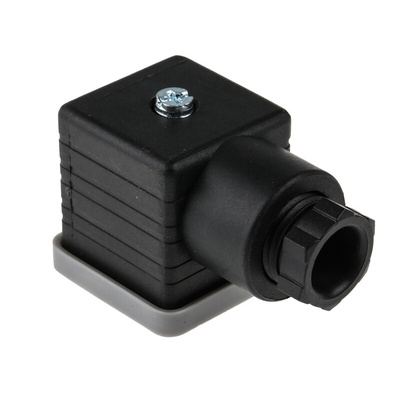

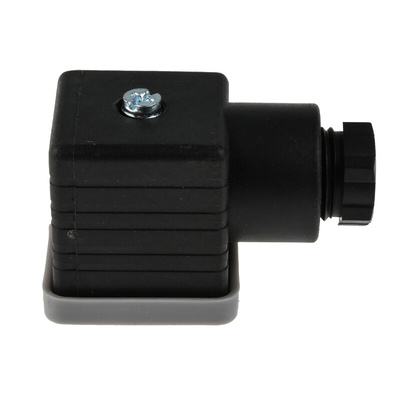

RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V AC Voltage

Looking for a way to attach a solenoid valve? Choose this female solenoid valve connector from RS PRO. It has a PG11-sized cable gland for mounting the cable into a pre-drilled hole and a screw mount, ensuring it remains firmly in place.


For strength and rigidity, the connector is made of Nylon-6 GF glass-fibre-reinforced polyamide. It also has a nitrile rubber seal to prevent leakage. As it can withstand temperatures of up to +90°C, it's suitable for use in harsh industrial environments.


The connector complies with the Restriction of Hazardous Substances (RoHS) standards, meaning it contains only trace amounts of any harmful materials. You'll commonly find this type of connector used with solenoid valves in pneumatic systems for factory automation.

Features and Benefits

• PG11 cable gland size


• Black colour


• Current rating of 10 A


• Voltage rating of 250 V AC


• Female, DIN 43650 A type connector


• Cable mount type


• Pole format of 3P+E


• Screw termination method
