RS PRO 2P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V ac Voltage, Разъем

DIN Connector Sockets, 2/3 Pole + Earth, Type A

A selection of 2 and 3 pole and earth, non-illuminated DIN connector sockets rated at 250Vac. These screw mount sockets are Type A, available with PG9 and PG11 glands and are of Nylon-6 GF construction, with a Nitrile/silicon gasket.

Features and Benefits:
• 2 and 3 Pole + earth versions
• Type A socket Type
• Gland size PG-9 and PG-11 variants
• Contact resistance 20mΩ max.
• Permissible Temperature 0 to 90° C
• HV breakdown test 2KV AC for 1 minute

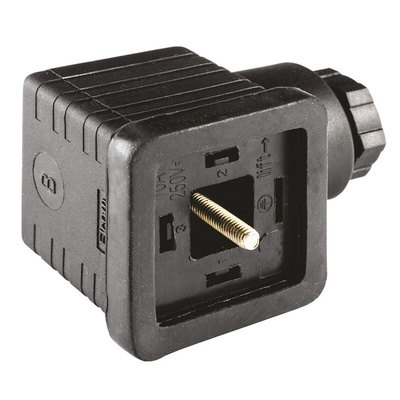

RS PRO 2P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V AC Voltage

Use this female solenoid valve connector from RS PRO for a reliable way to connect a solenoid valve. Its PG11-sized cable gland makes it easy to mount the cable into a pre-drilled hole and screw mount to ensure it stays firmly in place.


Thanks to the connector's Nylon-6 GF glass-fibre-reinforced polyamide material, it's highly durable and strong. It has a nitrile seal to prevent leaks. You can use it in a range of harsh industrial applications as it can withstand temperatures of up to +90°C.


You'll commonly find this type of connector used with solenoid valves in pneumatic systems, such as those used in factory automation. It meets Restriction of Hazardous Substances (RoHS) standards, so it contains only minimal amounts of any harmful materials.

Features and Benefits

• PG11 cable gland size


• Black colour


• Current rating of 10 A


• Voltage rating of 250 V AC


• Female, DIN 43650 A type connector


• Cable mount type


• Pole format of 2P+E


• Screw termination method

RS Pro Datasheet
