RS PRO 2P+E DIN 43650 A, Female Solenoid Valve Connector with Indicator Light, 24 V dc Voltage, Разъем

RS PRO 2P+E DIN 43650 A, Female Solenoid Valve Connector, 24 V dc Voltage

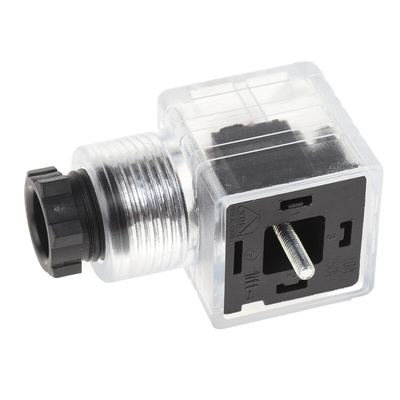

This 2-pole and Earth female solenoid valve connector from the RS PRO range forms a strong protective enclosure for solenoid valves or pressure switches. Compatible with a variety of components, the DIN 43650 Form A type of connector is commonly used in fluid power pneumatic and hydraulic systems.

This connector is a type A cable mount socket with a gland size of PG9. It's made from tough transparent polycarbonate and has a gasket to form a tight seal. Its indicator light shows when it's relaying power, so operators can quickly identify when there's a problem. Current rated at 10 A and voltage rated at 24 V dc, it operates safely at temperatures between 0˚C and +90˚C.

The connector has been stringently tested to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It contains only minimal levels of hazardous substances (RoHS).

Features and Benefits

• DIN 43650 A solenoid valve connector
• 2-pole + Earth
• Indicator light shows when relaying power
• Gland size PG9
• Type A cable mount socket
• Screw termination method
• Voltage rating of 24 V dc
• Current rating of 10 A
• High-voltage breakdown tested at 2,000 V ac/one minute
• Insulation resistance of 100 mΩ/one minute
• Operates from 0˚C to +90˚C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
