RS PRO 2P+E DIN 43650 A, Female Solenoid Valve Connector with Indicator Light, 24 V dc Voltage, Разъем

RS PRO 2P+E DIN 43650 A, Female Solenoid Valve Connector, 24 V dc Voltage

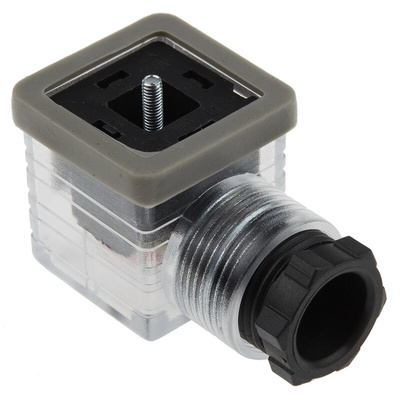

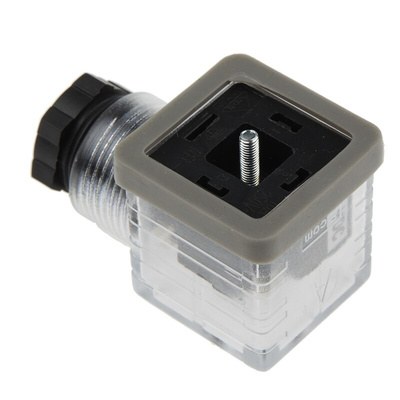

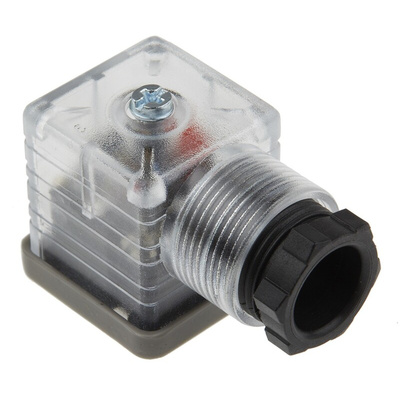

This 2-pole and Earth female solenoid valve connector from the RS PRO range is a strong protective enclosure for use with solenoid valves or pressure switches. The DIN 43650 Form A-type connector is compatible with various components and is commonly used in fluid power pneumatic and hydraulic systems.

This type-A screw-mount socket has a PG11 size gland. It's made from robust transparent polycarbonate with a silicone gasket to form a secure seal. The connector's indicator shows when it's relaying power, which helps when troubleshooting. It will operate from 0˚C to +90˚C. It's voltage rated at 24 V dc and current rated at 10 A.

The connector has been stringently tested to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It's also been certified by the RoHS as containing only minimal hazardous substances.

Features and Benefits

• DIN 43650 A solenoid valve connector
• 2-pole + Earth
• Cable mount
• Screw termination method
• Indicator light shows when relaying power
• Gland size PG11
• Voltage rated at 24 V dc
• Amp rated at 10 A
• High voltage breakdown tested at 2,000 V ac/one minute
• Insulation resistance of 100 mΩ/one minute
• Operates from 0˚C to +90˚C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
