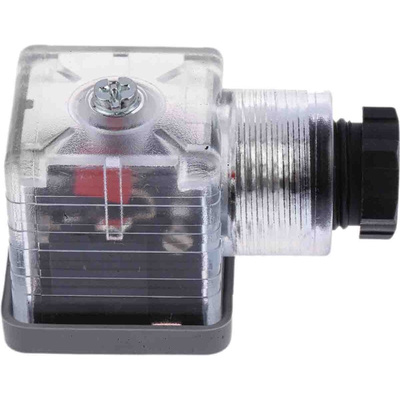

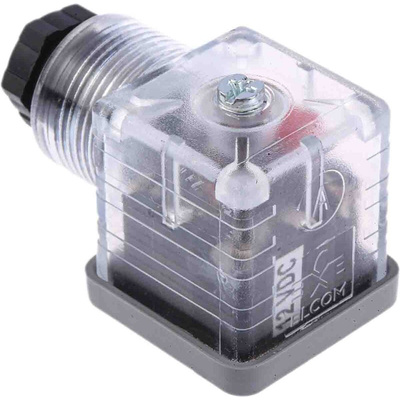

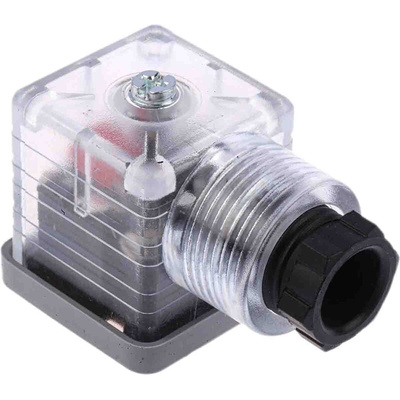

RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector with Indicator Light, 12 V dc Voltage, Разъем

RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector, 24 V dc Voltage

DIN 43650 valve connectors are commonly used in industry to transmit signals in magnetic valves, fluid power pneumatic and hydraulic systems. This RS PRO, 3-pole plus Earth female solenoid valve connector will protect solenoid valves or pressure switches from damage so they operate efficiently.

This connector has a voltage rating of 12 V dc and is current rated at 10 A. It will operate safely from 0˚C to +90˚C. Featuring an A-type connector with a gland size of PG9, it's compatible with numerous components. Problem-solving is simple, as an indicator light confirms power relay. This connector has a clear polycarbonate shell and a silicone gasket for protection.

The RS PRO range has been tested by leading engineers for robustness and consistency. The device is certified ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 so it won't damage equipment with electrostatic discharge. It also RoHS compliant so contains minimal hazardous substances.

Features and Benefits

• DIN (Deutsches Institut für Normung, the German Institute for Standardization) 43650 A solenoid valve connector
• 3-pole + Earth
• Indicator light shows when connector is relaying power
• Cable-mount socket type A
• Gland size PG9
• Screw termination method
• Voltage rating of 12 V dc
• Current rating of 10 A
• High voltage breakdown tested at 2,000 V ac/1 min
• Insulation resistance of 100 mΩ/1 min
• Operating temperature range of 0˚C to +90˚C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS PRO Datasheet
