RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 24 V dc Voltage, Разъем

RS PRO 3P+E DIN 43650 A, Female Solenoid Valve Connector, 24 V dc Voltage

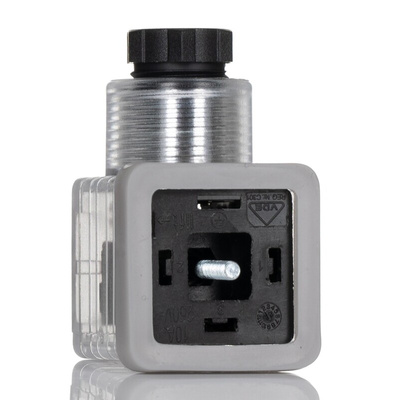

This 3-pole plus Earth female solenoid valve connector from the RS PRO range is a durable protective enclosure for solenoid valves or pressure switches. DIN 43650 valve connectors have a range of industrial applications, including fluid power pneumatic and hydraulic systems and signal transmission in magnetic valves.

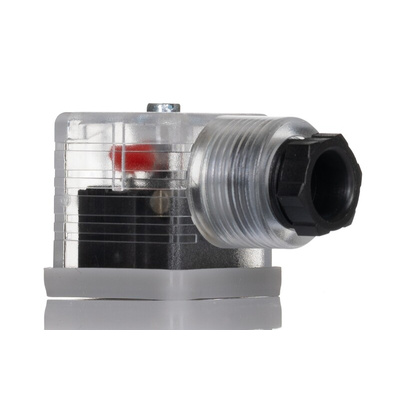

This DIN 43650 Form A-type connector has a gland size of PG9 and is compatible with various components. Voltage rated at 24 V dc, current rated at 10 A, the connector will operate down to 0˚C and up to +90˚C. The transparent polycarbonate housing and silicone gasket protect its valve from environmental stresses and an indicator light shows power relay to help you isolate problems.

The connector has been tested against international standards to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It's been certified by the RoHS as containing minimal hazardous substances.

Features and Benefits

• DIN 43650 A solenoid valve connector
• 2-pole + Earth
• Indicator light shows when connector is relaying power
• Screw mount socket type A
• Gland size PG9
• Screw termination method
• Voltage rating of 24 V dc
• Current rating of 10 A
• High voltage breakdown tested at 2,000 V ac/one minute
• Insulation resistance of 100 mΩ/one minute
• Operating temperature range 0˚C to +90˚C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
