RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 16mm Cutout, SPDT, Blue LED, 250V ac, IP65, IP67, Кнопочный переключатель

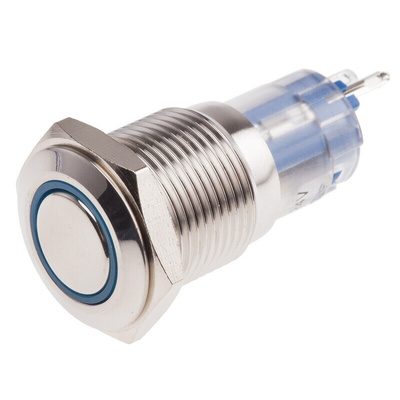

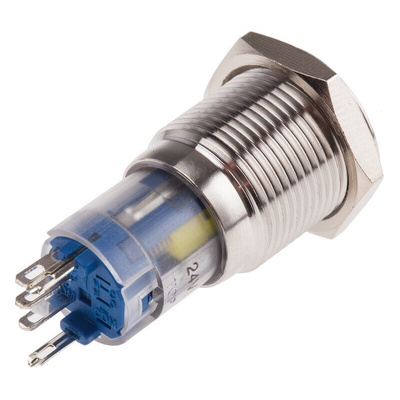

RS PRO Single Pole Double Throw (SPDT) Latching Blue LED Push Button Switch, IP65, IP67, 16 mm Diameter, Panel Mounting, 250 V

Use this RS PRO latching push-button switch to activate your electrical equipment. It's an anti-vandal switch, with an enclosed stainless steel construction that makes it able to withstand physical attack without suffering excessive damage.
The switch has an Ingress Protection (IP) rating of IP67 for its front panel, which means it's protected from water spray, as well as dirt and other small particles. This means your circuitry will remain safe and operational in a wide variety of environments, from dusty factories to wet warehouses.
The silver-plated copper alloy material used for its electrical contacts is highly conductive and resistant to wear and oxidisation. This means the part will deliver reliable performance over a long lifespan. This type of switch is often used on security dashboards or intercom panels.

Features and Benefits

• Single Pole Double Throw (SPDT) contact configuration
• Silver actuator colour
• Flat actuator type
• Contact current rating of 3 A at 250 V AC
• Voltage rating of 250 V AC
• Blue LED (light-emitting diode)
• Panel mounting
• Panel cut out diameter of 16 mm
• Latching switch operation
• Solder terminal type
• Ingress Protection (IP) rating of IP65 and IP67
• Silver-plated copper alloy contacts
