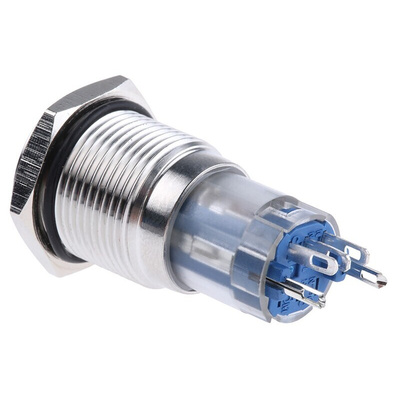

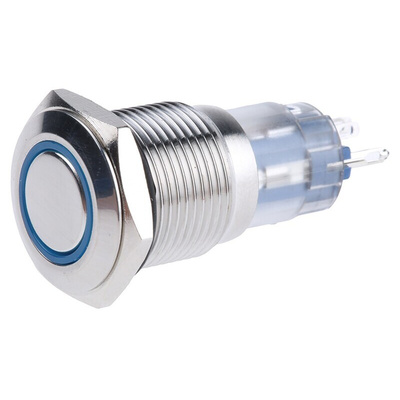

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Blue LED, 250V ac, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Double Throw (SPDT) Momentary Blue LED Push Button Switch, IP65, IP67, 16 mm (Dia.), Panel Mount

Stop and start the flow of electricity through a circuit with the RS PRO single pole double throw (SPDT) momentary blue LED (light-emitting diode) push-button switch. It's commonly found in commercial settings, including within telecommunications and lighting systems. Designed to withstand physical impact, it's also well-suited for use in public kiosks, outside panels and open dashboards.

The switch has a momentary operation, which means it requires continuous compression to remain on. It has a flat, silver actuator. There's a contact AC voltage rating of 250 V and contact current rating of 3 A @ 250 V AC.

Like all of the products in our RS PRO range, it's been tested by engineers for durability and consistency. This component has a sturdy stainless steel construction that also resists corrosion. It features a blue illuminated LED. With IP65 and 67 ratings, it's dust-tight and water-resistant.

Features and Benefits

• Momentary switch operation
• Push-button switch
• Panel mounting
• Illuminated
• Single pole double throw (SPDT) contact configuration
• Panel cut out diameter of 16 mm
• Blue LED
• IP ratings of IP65 and IP67 for water and dust protection
• Silver actuator
• Silver alloy contacts
• Voltage rating of 250 V AC
• Contact current rating of 3 A @ 250 V AC
• Solder terminal
• Flat actuator

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
