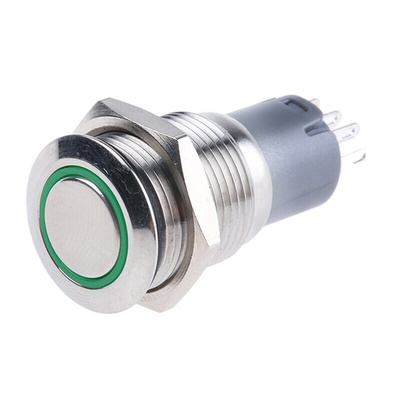

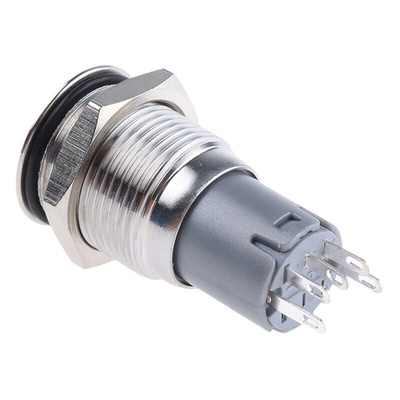

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Green LED, 250V ac, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Double Throw (SPDT) Momentary Green LED Push Button Switch, IP65, IP67, 16 mm Diameter, Panel Mounting, 250 V

This momentary push-button switch from RS PRO allows for the activation of electrical equipment in vulnerable public areas. Its anti-vandal design and robust stainless steel housing mean it can withstand physical attack without incurring excessive damage. The front panel has an IP67 rating for protection from water spray, dust and dirt, so it's safe to use in demanding environments.


The unit features ring illumination in green from a 24 V DC LED (light-emitting diode), making it easy to see. Its hardwearing electrical contacts are made from silver-plated copper alloy for high conductivity and excellent wear and oxidisation resistance. This ensures reliable performance and a long operating lifetime.


Switches of this type are well-suited to outdoor settings, such as public newsstands, outside panels and open dashboards. It comes with a three-year warranty for additional peace of mind.

Features and Benefits

• Single Pole Double Throw (SPDT) contact configuration


• Silver actuator colour


• Flat actuator type


• Contact current rating of 3 A at 250 V AC


• Voltage rating of 250 V AC


• Green LED (light-emitting diode)


• Panel mounting


• Panel cut out diameter of 16 mm


• Momentary switch operation


• Solder terminal type


• Ingress Protection (IP) rating of IP65 and IP67


• Silver-plated copper alloy contacts
