RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Blue LED, 250V ac, IP65, IP67, Кнопочный переключатель

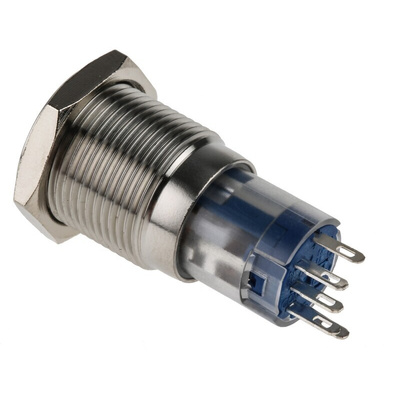

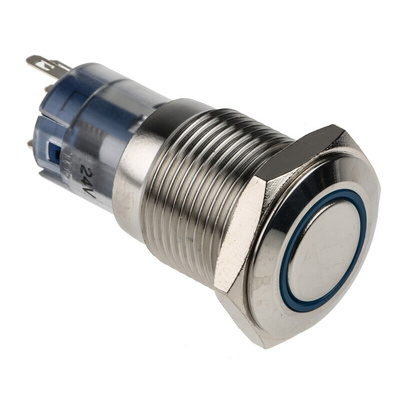

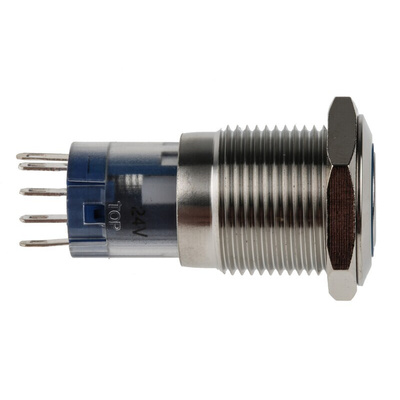

RS PRO Single Pole Double Throw (SPDT) Momentary Blue LED Push Button Switch, IP65, IP67, 16 mm Diameter, Panel Mounting, 250 V

This momentary push-button switch from RS PRO allows you to turn electrical devices on and off in challenging industrial and outdoor environments. Its robust, enclosed stainless steel design means it can withstand physical attack without breaking. This makes it especially well-suited to public newsstands, intercom panels and security dashboards.


The switch is ring-illuminated with a blue LED (light-emitting diode) for good visibility. Its front panel has an IP67 rating, meaning it's protected from water spray, dirt and dust. This keeps your unit safe and operational in many different settings, including damp or dusty processing plants.


This unit has silver-plated copper alloy contacts that are extremely conductive and resistant to oxidation and wear, so you're assured a long product life. For additional peace of mind, it comes with a three-year warranty.

Features and Benefits

• Single Pole Double Throw (SPDT) contact configuration


• Silver actuator colour


• Flat actuator type


• Contact current rating of 3 A at 250 V AC


• Voltage rating of 250 V AC


• Blue LED (light-emitting diode)


• Panel mounting


• Panel cut out diameter of 16 mm


• Momentary switch operation


• Solder terminal type


• Ingress Protection (IP) rating of IP65 and IP67


• Silver-plated copper alloy contacts
