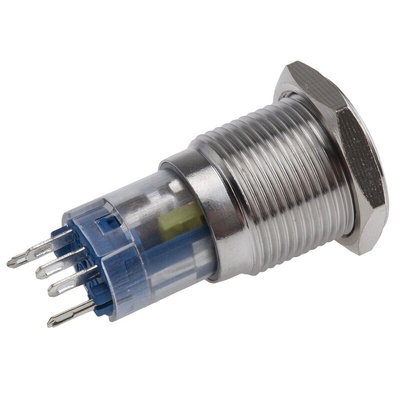

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Red LED, 250V ac, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Double Throw (SPDT) Momentary Red LED Push Button Switch, IP65, IP67, 16 mm Diameter, Panel Mounting, 250 V

Use this push-button switch from RS PRO to activate your electrical devices. It's a momentary switch, which means it only stays illuminated when pressed. As its anti-vandal, stainless steel construction makes it resistant to damage from physical attack, it's a good choice for security dashboards and intercom panels.


The front panel is IP67 rated for protection from water spray, dirt and other small particles. This means you can rest assured that your unit will remain in good working order, even in demanding industrial environments such as wet warehouses and dusty factories.


The electrical contacts on this component are made from a silver-plated copper alloy. This material is highly conductive and resistant to oxidation and wear for reliable operation and a long service life.

Features and Benefits

• Single Pole Double Throw (SPDT) contact configuration


• Silver actuator colour


• Flat actuator type


• Contact current rating of 3 A at 250 V AC


• Voltage rating of 250 V AC


• Red LED (light-emitting diode)


• Panel mounting


• Panel cut out diameter of 16 mm


• Momentary switch operation


• Solder terminal type


• Ingress Protection (IP) rating of IP65 and IP67


• Silver-plated copper alloy contacts
