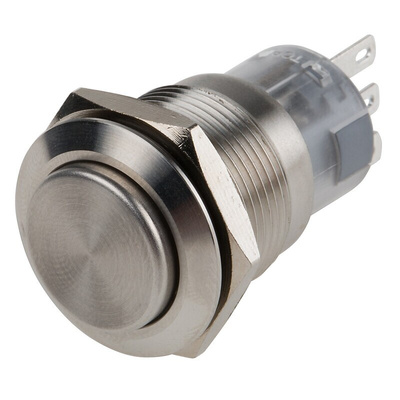

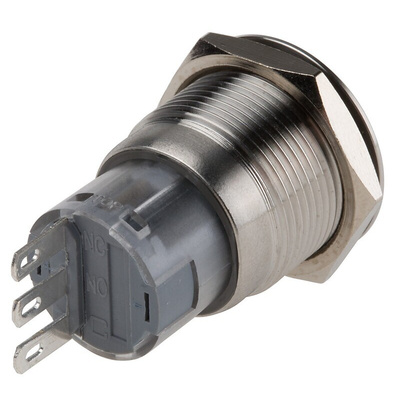

RS PRO Push Button Switch, Latching, Panel Mount, 19mm Cutout, SPDT, 250V ac, IP65, IP67, Кнопочный переключатель

RS PRO Single Pole Double Throw (SPDT) Latching Push Button Switch, IP65, IP67, 19 mm Diameter, Panel Mounting, 250 V AC

This push-button switch from RS PRO is a simple and reliable way to activate your electrical devices. It's a latching switch, meaning it will stay on until you turn it off with a second push. This type of switch is typically used to turn on computers, lights and televisions.


It's made from polished stainless steel with silver-plated copper alloy contacts, making it extremely hardwearing and corrosion-resistant. As it's an anti-vandal switch, this product can withstand physical attacks without breaking. These robust qualities make it well-suited to applications in public areas and demanding environments.


The switch has a wide operating temperature range of -20°C to +55°C, so it's suitable for use in many different industrial settings, including cold storage units and hot power plants. It has an IP65 (ingress protection) rating for protection against water spray, dust and dirt, so it's safe to use outside.

Features and Benefits

• Chrome actuator colour


• Plunger actuator shape


• Plunger actuator type


• Single Pole Double Throw (SPDT) contact configuration


• Contact voltage rating of 250 V AC


• Contact current rating of 5 A at 250 V AC


• Voltage rating of 250 V AC


• Ingress Protection (IP) rating of IP65 and IP67


• Panel mounting


• Panel cut out size of 19 mm (diameter)


• Latching switch operation


• Quick-connect terminal type


• Not illuminated
