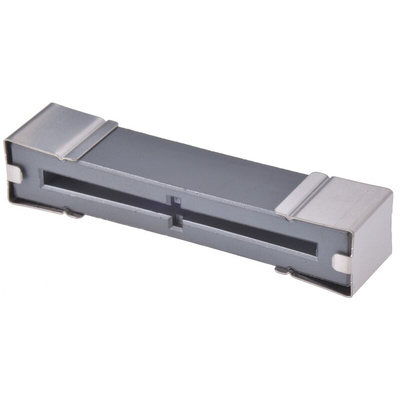

ESD-FPD-34, KEMET Flat Cable Ferrite Core, 34 wires maximum, Split Core Type, Inner dimensions:48.3 x 2mm, Ферритовый сердечник

8118900
Номер производителя: ESD-FPD-34Производитель: KEMET
Цена за шт.
1512.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 1422.00 руб. 1344.00 руб. 1224.00 руб. 1119.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ESD-FPD Series Split Cores with Metal Clamp

The ESD-FPD Series split cores are designed for use on flat cable in consumer electronics
This series features a stainless steel clamp and is available in a variety of sizes

Split Ferrite Rings

These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.

Техническая спецификация
pdfDatasheet
pdfSpecification sheet
Внешняя высота:
10мм
Внешняя глубина:
12.7мм
Внешняя ширина:
60мм
Высота внутренняя:
2мм
Максимальное количество проводов:
34
Материал:
Ferrite
Наружные размеры:
60 x 12.7 x 10мм
Применение:
Consumer Electronics
Размеры внутренние:
48.3 x 2мм
Тип:
Разъёмный сердечник
Ширина внутренняя:
48.3мм
