1119753, Lapp ÖLFLEX CLASSIC 110 Control Cable, 3 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG, Кабель

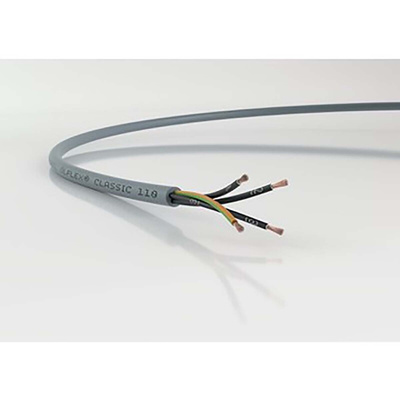

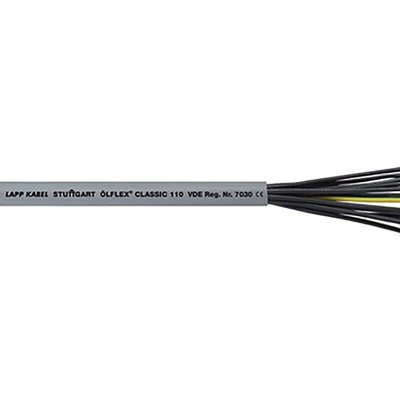

Ölflex Classic 110

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 9A Current Rating, 5.1mm OD -ÖLFLEX CLASSIC Series - 1119753

Looking for robust power and signal cabling for industrial applications? Reach for this control cable from LAPP. It has a PVC outer sheath, making it resistant to oil and chemicals, as well as being flame retardant, so it's a safe choice for tough industrial settings. As it can withstand one million bending cycles, you can also use it in applications involving some flexing such as power chains with a travelling distance of up to 5m.

• Voltage rating of 300/500V for reliable performance in high-voltage applications
• Cross-sectional area of 0.55mm² for installations where space is at a premium
• PVC insulation and sheathing make it suitable for dry and humid conditions

Applications

• Machine tools
• Construction industry
• Smart homes
• Refrigeration units

What type of control cable is this?

This is a 3-core YY control cable, which offers a balance between flexibility and durability.

OLFLEX CLASSIC 110 Control Cable Data Sheet

Cable Selection Guide
