4520013, Lapp ÖLFLEX® Series Black 4 mm² Hook Up Wire, 100m, PVC Insulation, Кабель

LAPP Hookup And Equipment Wire, 100m Length, 4.8mm OD - 4520013

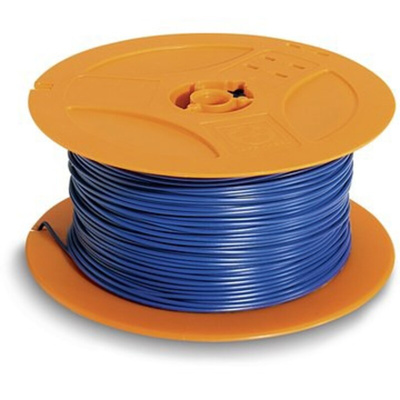

Use this hookup wire from LAPP to connect your equipment and machinery to an electrical power supply. Its copper conductors provide a stable and reliable connection, while a PVC (polyvinyl chloride) outer sheath insulates against electric shocks. This material also withstands impact and abrasion, so you can rely on the cable for use in harsh environments. For easy handling, the wire is supplied on a reel – cut what you need for each job from its 100m length.

Features & Benefits

• Light weight of 45kg/km for easy handling
• Compact outer diameter of 4.8mm for space efficiency in small enclosures
• Wide operating temperature range of -30°C to +80°C for use in industrial and commercial environments
• Voltage rating of 450/750V for versatile use in both low-voltage and high-voltage applications

Applications

• Power management systems
• Manufacturing machinery
• Medical equipment

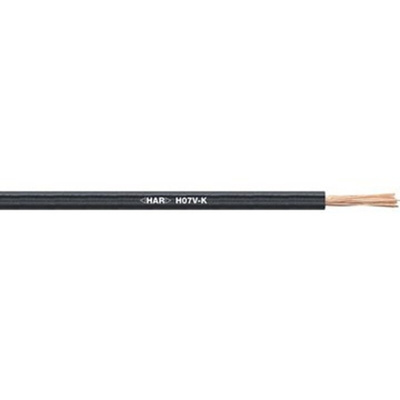

What does H07V-K mean in relation to this cable?

H07V-K is a code to indicate this cable belongs to the harmonised reference system. The code signifies the cable is harmonised (H), has a voltage rating of 450/750V (07), a PVC outer sheath (V) and has a single-core copper conductor (K).
