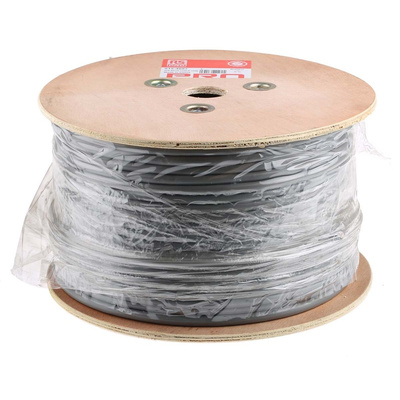

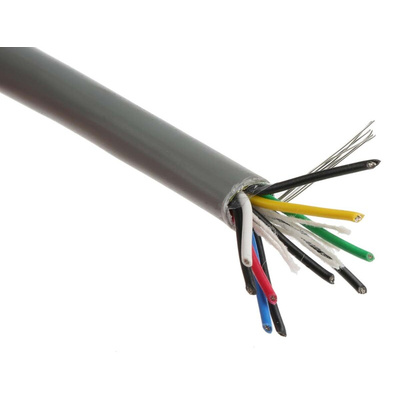

RS PRO Multicore Data Cable, 5 Pairs, 0.2 mm², 10 Cores, 24 AWG, Screened, 100m, Grey Sheath, Кабель

RS PRO 5 Pair Tinned Copper Multipair Industrial Cable, Euroclass Eca, Grey, 0.2 mm², 100 m

This high-performance cable from RS PRO transfers data quickly and without interference from outside sources. You can use it in industrial process control applications to communicate between a control panel and other equipment.
A screen covering the conductor's wires provides protection from external interference and electromagnetic discharge, which shields it effectively from crosstalk between conductors. Its PVC (polyvinyl chloride) sheath enhances the robustness and durability of the product to extend its working life. PVC also provides first-class insulation to prevent electrical leakage and make the cable safer to use.
Because of this cable's excellent resistance to external noise, it's safe to use with sensitive robotic machinery in industrial automation applications. It meets Euroclass Eca standards, which means it complies with the Construction Projects Regulation (CPR) and can be installed in buildings that have stringent fire safety requirements.

Features and Benefits

• Wire size of 24 AWG (American Wire Gauge)
• Multicore cable type
• Seven core strands, each of 0.2 mm
• Cross-sectional area of 0.2 mm²
• Length of 100 m
• Five pairs
• Outer diameter of 6.9 mm
• Screened
• Grey PVC outer sheath
• Tinned copper shield type
• Meets CPR Euroclass Eca standards for fire safety
