RS PRO Twisted Pair Data Cable, 2 Pairs, 0.34 mm², 4 Cores, 22 AWG, Screened, 100m, Grey Sheath, Кабель

RS PRO 2 Pair Aluminium Foil-PET Tape Multipair Industrial Cable (Euroclass Eca) Grey 100 m

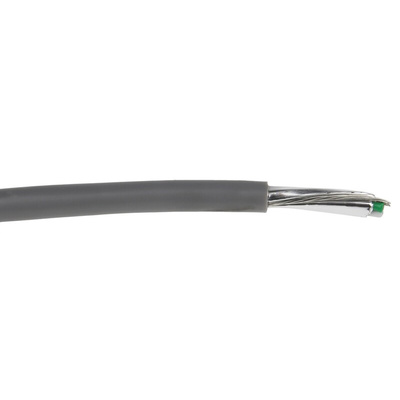

This multipair industrial cable is part of the RS PRO range. It offers outstanding crosstalk and interference cancellation across high-speed data-transmission systems. The cable has two pairs of 7/0.25 mm stranded and tinned-copper conductors with polypropylene insulation. These conductors are colour coded for easy identification during the installation process.

Grounded with tinned-copper drain wire and shielded with aluminium foil tape, the cable is protected against electrical interference. Designed to reduce signal distortion at fast processing speeds, it has high tensile strength and is covered by a robust and durable PVC sheath, which is grey in colour. With a length of 100 metres, this industrial cable can be used in all sizes of working environments.

These cables are suited for both commercial and industrial workplaces. They're typically used for data processing, telecommunications as well as process and control applications.

Features and Benefits

• Contains two pairs of conductors
• 22 AWG (American wire gauge)
• Outer diameter of 4.5 mm
• Screened by aluminium foil-PET tape
• Hardwearing, grey PVC sheath

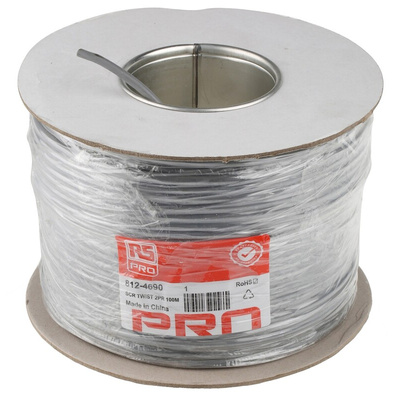

• Cable length of 100 m
• Core strands of 7/0.254 mm
• Twisted pair cabling
• Complies with RoHS (Restriction of Hazardous Substances) and Euroclass Eca standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
