RS PRO Twisted Pair Data Cable, 3 Pairs, 0.33 mm², 6 Cores, 22 AWG, Screened, 50m, Grey Sheath, Кабель

RS PRO 2 Pair Aluminium Foil-PET Tape Multipair Industrial Cable 0.33mm² (Euroclass Eca) Grey 50 m

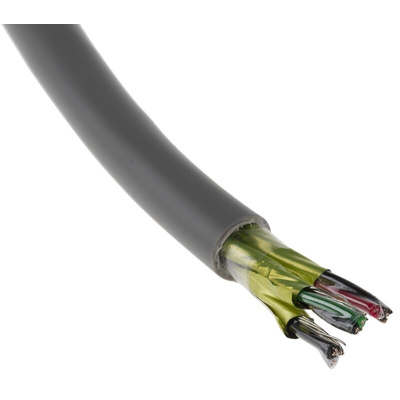

This multipair industrial cable is part of the trusted RS PRO range. It offers reliable cancellation of crosstalk and interference in high-speed data-transmission systems. Two pairs of tinned-copper, 7/0.254 mm stranded conductors are insulated by a polypropylene covering. Each of the conductors is colour-coded to make identification easier during the installation process.

The cable is shielded with aluminium foil tape and has a tinned-copper drain wire for grounding. These protect against electrical interference and reduce signal distortion at fast processing speeds. Wrapped in a grey PVC sheath, this cable boasts high tensile strength and is robust and durable. With a length of 50 metres, it can be used in working environments of all sizes.

These industrial cables are suited for both commercial and industrial workplaces and typically used for data processing, telecommunications, and process and control applications.

Features and Benefits

• Contains three pairs of conductors
• Cross-sectional area of 0.33 mm²
• 22 AWG (American wire gauge)
• Outer diameter of 7.9 mm
• Screened by aluminium foil-PET tape
• Hardwearing, grey PVC sheath
• Cable length of 50 m
• Core strands of 7/0.254 mm
• Twisted pair cabling
• Compliant with RoHS (Restriction of Hazardous Substances) and Euroclass Eca standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
