RS PRO Twisted Pair Data Cable, 2 Pairs, 0.34 mm², 4 Cores, 22 AWG, Screened, 500m, Grey Sheath, Кабель

Screened Multi-pair 22AWG

These cables feature high attenuation of crosstalk and interference, thus giving excellent individual signal isolation, e.g. as required for computer to peripheral equipment connections. Pairs of 7//0.25mm (22 a.w.g.) stranded, tinned copper conductors are insulated with polypropylene, twisted together with a tinned copper drain wire and wrapped in aluminised polyester tape (except the 2 pair which has a common drain wire). The selected number of pairs is wrapped overall in polyester tape, with a PVC outer sheath. Each pair of conductors is colour coded to aid identification and the earth drain wire ensures good earth continuity.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

RS PRO 2 Pair Aluminium Foil-PET Tape Multipair Industrial Cable 0.34mm² (Euroclass Eca) Grey 500 m

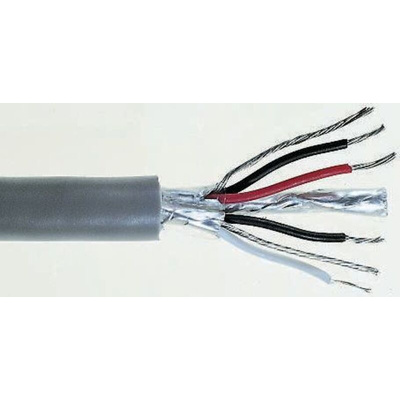

This multipair industrial cable from the RS PRO range offers excellent cancellation of crosstalk and interference across high-speed data-transmission systems. It features two pairs of 7/0.25 mm stranded, tinned-copper conductors insulated with polypropylene. Each pair of conductors is colour coded to aid identification during installation.

Shielded with aluminium foil tape and grounded with tinned-copper drain wire, the cable is protected against electrical interference and reduces signal distortion at fast processing speeds. It has high tensile strength and is protected by a grey PVC sheath, which is robust and durable. Available in a length of 500 metres, this industrial cable can be used in working environments of all sizes.

These industrial cables are typically used for data processing, telecommunications and process and control applications. They're suited for both commercial and industrial workplaces.

Features and Benefits

• Contains two pairs of conductors
• Cross-sectional area of 0.34 mm²
• 22 AWG (American wire gauge)
• Outer diameter of 4.5 mm
• Screened by aluminium foil-PET tape
• Hardwearing PVC sheath
• Cable length of 500 m
• Stringently tested to RoHS (Restriction of Hazardous Substances) and Euroclass Eca standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Industrial Cable

Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
