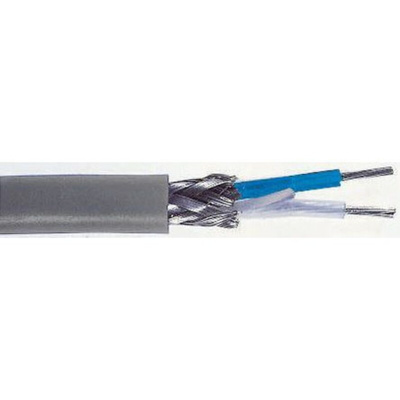

RS PRO Grey Unterminated to Unterminated Coaxial Cable, 78 Ω 6.15 mm OD 100 m

Transmit radio frequency (RF) signals between electronic devices with this grey unterminated to unterminated coaxial cable from RS PRO. It's found in residential and commercial settings from driveways to offices and labs. You can use it with signal distribution and security systems including radio and CCTV.
You'll benefit from lower levels of sound and image interference, thanks to the twisted pair of annealed copper braids. They're contained within a hardwearing PVC (polyvinyl chloride) sheath to ensure they withstand the knocks and scrapes of daily life.

Features and Benefits

• Attenuation of 2 dB/100 m at 1 MHz, 4.8 dB/100 m at 10 MHz, 9 dB/100 m at 50 MHz
• Twisted pair cable shape
• Characteristic impedance of 78 Ω
• Tinned copper conductor material
• Stranded conductor strand type
• Connector A is unterminated
• Connector B is unterminated
• Seven core strands of 0.3 mm
• PE (polyethylene) insulation material
• Length of 100 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -30°C
• Seven strands
• Operating temperature range of -30°C to +70°C
• Outer diameter of 6.15 mm
• Reel length of 100 m
• Grey sheath colour
• Polyvinyl chloride (PVC) sheath material
• Strand size of 0.32 mm
• Euroclass Eca standards met
• Unterminated
