RS PRO Multicore Data Cable, 0.22 mm², 3 Cores, 24 AWG, Screened, 500m, Grey Sheath, Кабель

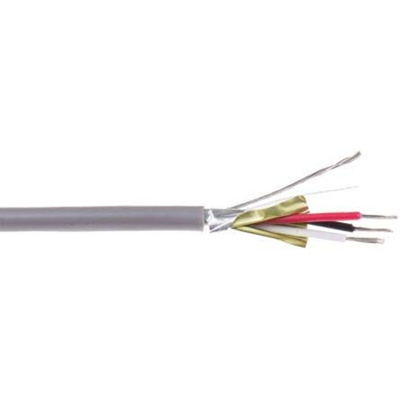

RS PRO Screened Industrial Cable, Grey, 3 Core, 0.22 mm², 500 m Reel

This RS PRO 3-core cable is specifically designed for high-speed data transmission. It's suitable for industrial process and control applications, for sending rapid electronic signals to machinery. It comes with a drain wire, which directs electrical noise into the ground to prevent it from interfering with the cable's transmission signals.
The cable's copper wiring is insulated with polyethylene (PE), which isn't affected by heat. This means that the cable is safe to use in temperatures of up to +70°C and as low as -20°C. Its polyvinyl-chloride (PVC) outer sheath is strong, effectively protecting the cable's internal wiring and extending its working life.
Cables like this are often used in data processing and information systems. As it contains only minimal levels of any harmful materials, the cable is also Restriction of Hazardous Substances (RoHS) compliant.

Features and Benefits

• Wire size of 24 AWG (American Wire Gauge)
• Copper conductor material
• Seven core strands of 0.2 mm
• Cross-sectional area of 0.22 mm²
• Current rating of 1 A
• Drain wire
• Flame-retardant
• Polyethylene (PE) insulation material
• Length of 500 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -20°C
• Minimum bend radius of 5 x diameter
• Three cores
• Outer diameter of 4 mm
• Foil screen type
• Screened
• Grey sheath colour
• Polyvinyl-chloride (PVC) sheath material
• Voltage rating of 300 V

RS Pro Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021
