RS PRO Multicore Data Cable, 2 Pairs, 0.76 mm², 4 Cores, 22 AWG, Screened, 100m, Grey Sheath, Кабель

Double Foil-screened Two Pair

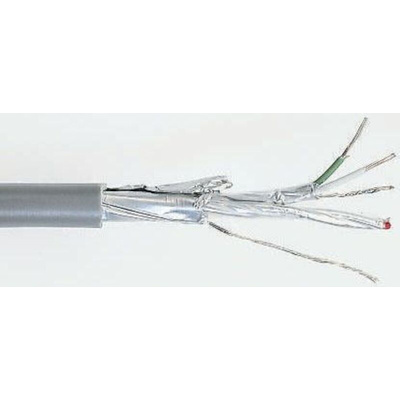

2 pairs of 7//0.254 mm (22 a.w.g.) tinned copper conductors insulated with polyethylene, each wrapped in an aluminised tape with a tinned copper drain wire. The pairs are wrapped in an overall aluminised tape with a drain wire and grey outer PVC sheath.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

RS PRO 2 Pair Aluminium Foil-PET Tape Multipair Industrial Cable 0.76 mm² (Euroclass Eca) Grey 100 m

Need to transfer large volumes of data between computers in your workplace? This RS PRO multicore cable is designed for high-speed data transmission and information systems. You can also use it for process and control applications.

Inside the cable, two pairs of tinned-copper conductors are insulated with polyethylene. Each conductor has 7 strands of 0.254 mm. The conductors are foil-screened and wrapped with aluminium tape to reduce external electrical interference. For effective grounding, there's a tinned-copper drain wire. The outer sheath is made from flexible grey PVC for easy use. Available in a length of 100 metres, this cable has an outer diameter of 5 mm.

As it can stand up to factory-floor working conditions while processing large volumes of data, this multipair industrial cable is widely used in manufacturing, as well as data-focused industries.

Features and Benefits

• 2 pairs of conductors
• 22 AWG
• Cross-sectional area of 0.76 mm²
• Outer diameter of 5 mm
• Outer sheath made from PVC
• Core strands of 7/0.254 mm
• Meets Euroclass Eca standards for cables
• Not intended for use as a power cable

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Industrial Cable

Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
