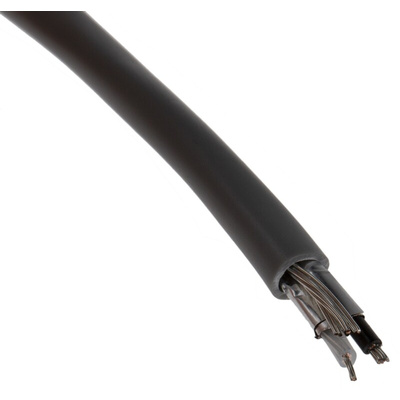

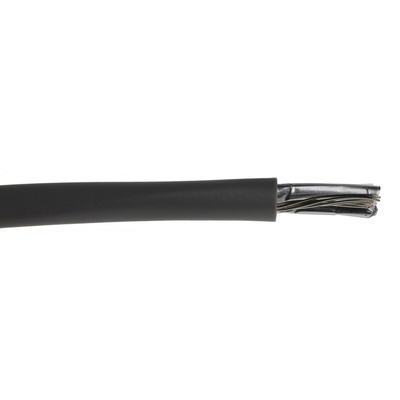

RS PRO Twisted Pair Data Cable, 1 Pairs, 0.56 mm², 2 Cores, 20 AWG, Screened, 100m, Grey Sheath, Кабель

Overall Screened Single Pair

A single twisted pair cable with tinned copper conductors insulated with polyethylene, wrapped in an aluminised tape with a tinned drain wire (same size as conductor) and a PVC outer sheath, UL style 2092.

Applications

Internal wiring
Electronic equipment

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

RS PRO 1 Pair Aluminium Foil-PET Tape Multipair Data Cable 0.56 mm² (Euroclass Eca) Grey 100m

Multipair cables contain multiple conductors in a single jacket, enabling high-speed data transmission with little to no external interference. This multipair data cable from the trusted RS PRO range features two conductors twisted into a single circuit. Cables like these are well suited for data processing, information systems and telecommunications environments.

Shielded with aluminium foil tape and grounded with a tinned-copper drain wire, this cable is protected against electrical interference and reduces signal distortion at high-processing speeds. This additional screening ensures improved performance over higher data rates and makes the cable an effective choice for industrial use.

Covered with a grey PVC sheath, this multipair cable is robust and has high tensile strength. It comes in a length of 100 metres and is a cost-effective option that's simple to install in both homes and businesses.

Features and Benefits

• Multicore cable
• Cross sectional area of 0.56 mm²
• 20 AWG (American wire gauge)
• Screened by aluminium foil-PET tape
• PVC sheath
• Cable length of 100 m
• Stringently tested to RoHS (Restriction of Hazardous Substances) and Euroclass Eca standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Industrial Cable

Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
