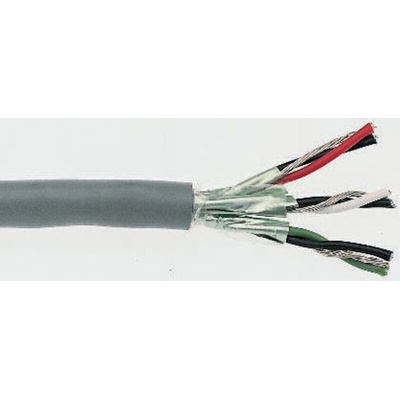

RS PRO Multicore Data Cable, 3 Pairs, 0.33 mm², 6 Cores, 22 AWG, Screened, 100m, Grey Sheath, Кабель

Halogen-free Screened Multi-pair

These cables feature halogen-free polyolefin sheathing, which is flame retardant to BS 4066 and IEC 332 Part 3, and which gives off low smoke and fume emissions when burnt.,The conductors are made of 7/0·25 mm (22 a.w.g.) stranded tinned copper, polyolefin insulated and twisted in colour-coded pairs.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

RS PRO 3 Pair Aluminium Foil-PET Tape Multipair Industrial Cable 0.33 mm² (Euroclass Eca) Grey 100 m

This multipair industrial cable from our RS PRO range is designed for high-speed data-transmission systems. It contains three pairs of conductors that have been shielded against external interference.

The conductors are made of twisted 7/0.254 mm tinned-copper and are insulated with aluminium foil, which blocks out crosstalk or 'noise'. Each pair of conductors is colour-coded for easy identification during installation. The cable comes in a flexible low-smoke zero-halogen (LSZH) sheath made from polyolefin. Flame-retardant, it complies with international standards IEC 332 Part 3 and BS 4066. As the sheath gives off minimal smoke and fumes when burned, this cable is a safer alternative to PVC in offices and other workplaces.

Available in a length of 100 m, this multipair industrial cable can be used for computing and telecommunications, as well as process and control applications in domestic and commercial environments.

Features and Benefits

• Multicore cable
• Flame-retardant polyolefin sheath
• Contains three pairs of conductors
• 22 AWG
• Outer diameter of 6.9 mm
• Screened by aluminium foil-PET tape
• LSZH (low-smoke zero-halogen) outer sheath
• Cable length of 100 m
• Stringently tested to RoHS (Restriction of Hazardous Substances), IEC 332 Part 3, BS 4066 and Euroclass Eca standards to ensure minimal smoke and fumes when burned

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Industrial Cable

Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
