RS PRO Twisted Pair Data Cable, 6 Pairs, 0.25 mm², 12 Cores, 24 AWG, Screened, 100m, Grey Sheath, Кабель

Halogen-free Overall Screened Multi-pair

Flame retardant halogen-free cable with polyolefin sheathing, that meets BS 4066 and IEC 332 Part 1, which gives off low smoke and fumes when burnt.,The conductors are made of 7/0·2 mm (24 a.w.g.) stranded tinned copper, polyolefin insulated and twisted in colour-coded pairs. A drain wire of similar gauge is included and there is an overall foil wrap.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

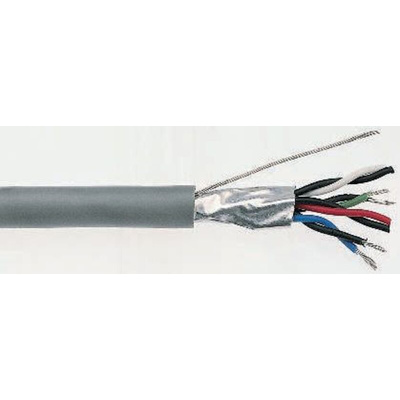

RS PRO 6 Pair Tinned Copper Multipair Industrial Cable (Euroclass Eca) Grey

This RS PRO twisted pair cable is used for high-speed data transmission systems. It's flexible and maintains the high-quality signal strength needed for data processing or information systems. As this cable complies with BS 4066 and IEC 332 Part 1 safety standards, it's often found in office or manufacturing environments where there are stringent fire-safety standards.

This multipair industrial cable features 6 pairs of 7/0.2 mm stranded tinned-copper conductors that are colour-coded to make installation simple. The conductors are wrapped in foil to reduce external signal interference and a tinned-copper drain wire is included for grounding. This cable is halogen-free and releases low levels of smoke and toxic chemicals when burned. It's also flame-retardant thanks to a grey polyolefin sheathing.

Durable enough to withstand tough working conditions, this industrial cable is commonly used in factories.

Features and Benefits

• Flame-retardant grey polyolefin sheathing for protection in case of fire
• 6 pairs of conductors
• 24 AWG
• Core strands of 7/0.2 mm
• Tinned-copper shield
• Outer diameter of 7.5 mm
• Meets BS 4066 and IEC 332 Part 1 standards for flame retardancy
• Not intended for use as a power cable

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Industrial Cable

Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
