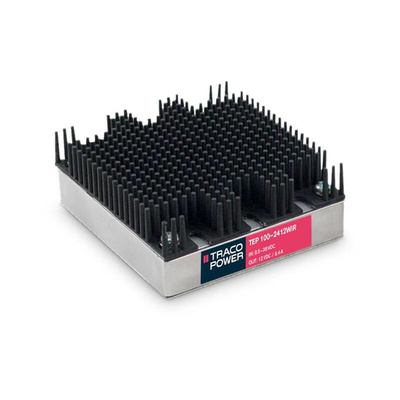

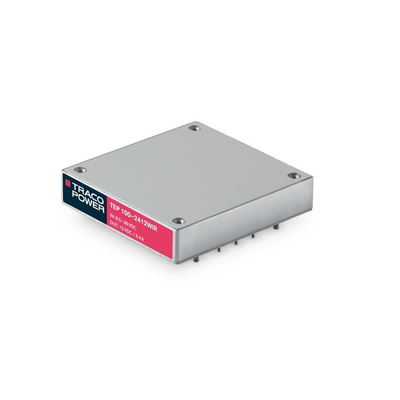

TEP 100-2412WIR, TRACOPOWER TEP 100WIR DC-DC Converter, ±12V dc/ 8.4A Output, 9 → 36 V dc Input, 100W, Chassis Mount, +75°C Max, Преобразователь

Traco 100W Single Output Regulated Isolated DC-DC Converter - TEP-100WIR Series

The Tracopower TEP 100WIR series is a family of 100W single output, regulated, isolated, high performance DC-DC converters in a rugged, sealed industry standard half brick package. These railway approved DC-DC converters have a high efficiency of up to 92%, allowing an operating temperature up to 60°C with natural convection cooling; which can be increased up to 70°C with heatsink or up to 85°C if mounted on an iron base plate. The TEP 100WIR series of DC-DC converters feature a very wide input voltage range and reverse input voltage, which makes them an interesting solution for battery operated systems. Ideal applications for these single output, regulated, isolated, high performance dc-dc converters are in Telecom/Datacom, industry control and Railway systems for on board power distribution.

Compact metal package
Ultra wide 4:1 input voltage ranges
EN 50155 approved for railway applications
Very high efficiency up to 92%
No minimum load
Soft start
Adjustable output voltage +10/-20%
Sense line
Remote On/Off input
Under voltage lock-out circuit
Reverse input voltage protection
Over temperature protection

Standards

EN 50155, UL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL
Railway

Traco Power TEP 100WIR Series DC-DC Converter, Isolated, Dual Output - TEP 100-2412WIR

This Traco Power DC-DC converter is a reliable and efficient solution for various industries. With an isolated design and chassis mount compatibility, this converter offers superior performance with a power rating of 100W. This series ensures stability and precision in a compact package, making it ideal for critical applications.

Features & Benefits

• Isolated design for enhanced safety and precision
• Chassis mount feature for easy installation in various systems
• 100W power rating for demanding applications
• TEP 100WIR series ensures superior performance and stability
• ±12V output voltage for versatile functionality
• 24V input voltage range for compatibility with different setups
• High efficiency ensures minimal energy loss
• Railway approved, meeting industry standards for reliable operation

Applications

• Railway systems for efficient power distribution
• Industrial control applications where reliability is crucial
• Automation systems where precision is required
• Telecom and datacom setups for stable power management
• Any system requiring a high-performance DC-DC converter

Can it handle a wide input voltage range?

Yes, it can handle input voltages ranging from 9V to 36V DC.

Will it work in harsh environments?

Yes, the converter is designed to operate in temperatures ranging from -40°C to +75°C.

Is it suitable for on-board power distribution in railway systems?

Yes, this converter is railway approved and meets the necessary standards for onboard use.
