TEP 100-4818WIR, TRACOPOWER TEP 100WIR Isolated DC-DC Converter, 48V dc/ 2.1A Output, 100W, Chassis Mount, +75°C Max Temp -40°C Min Temp, Преобразователь

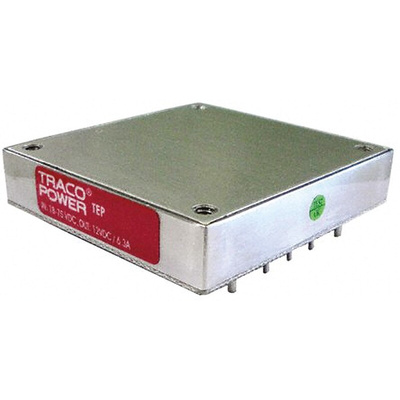

Traco 100W Single Output Regulated Isolated DC-DC Converter - TEP-100WIR Series

The Tracopower TEP 100WIR series is a family of 100W single output, regulated, isolated, high performance DC-DC converters in a rugged, sealed industry standard half brick package. These railway approved DC-DC converters have a high efficiency of up to 92%, allowing an operating temperature up to 60°C with natural convection cooling; which can be increased up to 70°C with heatsink or up to 85°C if mounted on an iron base plate. The TEP 100WIR series of DC-DC converters feature a very wide input voltage range and reverse input voltage, which makes them an interesting solution for battery operated systems. Ideal applications for these single output, regulated, isolated, high performance dc-dc converters are in Telecom/Datacom, industry control and Railway systems for on board power distribution.

Compact metal package
Ultra wide 4:1 input voltage ranges
EN 50155 approved for railway applications
Very high efficiency up to 92%
No minimum load
Soft start
Adjustable output voltage +10/-20%
Sense line
Remote On/Off input
Under voltage lock-out circuit
Reverse input voltage protection
Over temperature protection

Standards

EN 50155, UL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL
Railway
