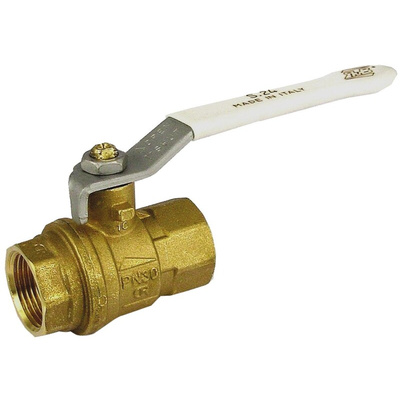

RS PRO Brass Full Bore, 2 Way, Ball Valve, BSP 1/2in, 30bar Operating Pressure, Шаровой клапан

RS PRO S.24 Dezincification-Resistant, Full Port Brass Ball Valve - 1/4 Turn

This hot forged Ball Valve from our high-quality own RS PRO brand is designed to meet your requirements for handling water in areas where there is a problem of dezincification. New technology allows this valve to retain the reliability and competitiveness of brass. When it comes to corrosion resistance, this valve is comparable to bronze.

Features and Benefits

•The dual sealing system allows the valve to be operated in either direction which makes installation easier
•Maintenance-free
•24h 100% seal test guaranteed
•Lever clearly shows ball position
•Silicon-free lubricant on all seals
•Chrome-plated DZR (Dezincification-resistant) Brass ball for longer life
•Lever stops on the body to avoid stresses at the stem
•No metal-to-metal moving parts
•Pure PTFE self-lubricating seats with flexible-lip design sealing
•EN 10226-1, ISO 228 parallel female by female threads
•Maintenance-free stem, thanks to two FPM O-rings at the stem for maximum safety
•Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
•Blowout-proof unplated DZR brass stem
•Handle removable with valve in service
•Working temperature -40°C (-40°F)/+170°C(+350°F)
•Flow - Full port to DIN 3357 for maximum flow
Ball Valve Body
•Dezincification resistant ADZ-T and ADZ-P brass approved to SBN-PFS 1983:2 and NR-BFS 1988:18 specifications
•Hot forged sand blasted DZR (Dezincification-resistant) unplated body and cap sealed with Loctite® or equivalent thread sealant

Applications

This hot forged Ball Valve is ideal to use within the oil and gas industry and it plays an essential role in any pipeline set up to control the flow and the pressure of oil, gas or other liquids.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Approvals apply to specific configurations only.

Warning

Freezing of the fluid in the installation may severely damage the valve

Approvals

WRAS (UK)
GOST-R (Russia)
Expert Conclusion (Russia)
EAC Conforming (Russia)
RoHS Compliant

RS PRO Datasheet
