RS PRO Single port Valve Actuator -, 230 V Supply Voltage, Привод клапана

Electric Actuator for Quarter Turn Valves

Suitable for actuatable valves up to 1.1/4in. size (only for s.64 LT)
Compact package to fit in restricted spaces
Power supply 230Vac 50Hz / 24Vac 50-60Hz
Motor power consumption 10W
Torque output up to 5 Nm (44 in-lb)
Operation time 20 to 25 sec
Working temperature -20ﾟC (-4ﾟF) +80ﾟC (+180ﾟF)
Protection class IP65 comparable to NEMA 4X
Micro-switches for open-close signals
Micro-switches can pass up to 1A Reversing motor

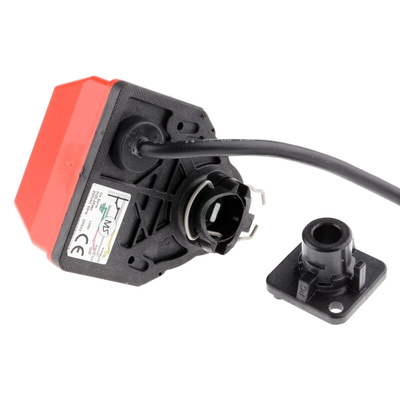

Direct mount on valve for perfect shaft alignment
Positive orientation between ball valve and actuator
Actuator easily removable for manual operating

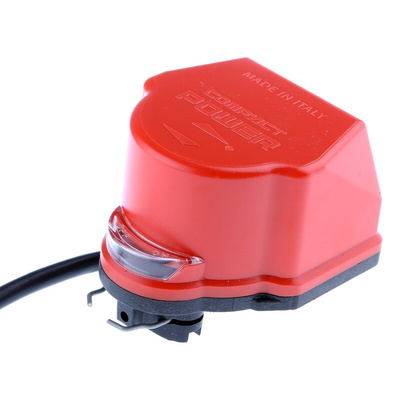

Visual position indicator
Corrosion resistant plastic housing
Actuator has successfully passed 100,000 cycle life tests
Duty cycle 60%

Note

Actuators 8125214, 8125201 and 8125198 are 2 wires
Actuators 8125217, 8125208 and 8125205 are 3 wires
