RS PRO Nickel Plated Brass Full Bore, 2 Way, Ball Valve, BSPT 3/4in, 40bar Operating Pressure, Шаровой клапан

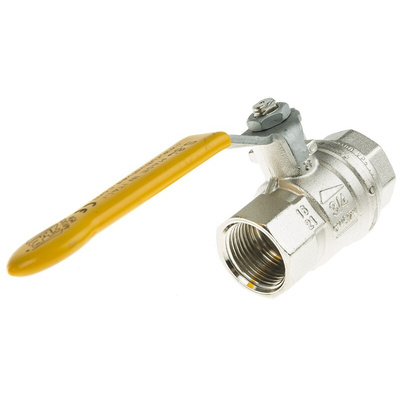

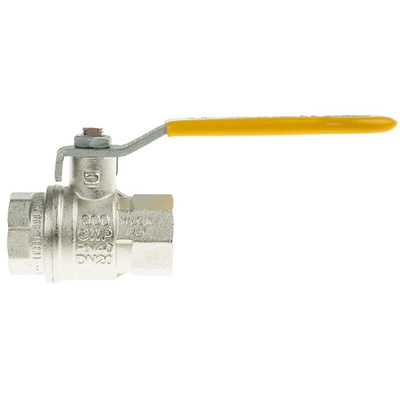

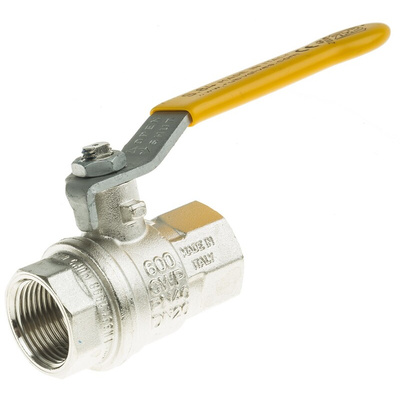

RS PRO Process Ball Valve 3/4 in

Use this RS PRO process ball valve to regulate flows in enclosed applications. It provides an easy-to-use solution for opening and closing the flow of water, oil or gas.


The valve’s handle is clearly labelled to indicate the open and shut positions, minimising the risk of accidentally opening the system when it should be closed or vice-versa. It has a dual sealing mechanism for multi-directional use, and the polytetrafluoroethylene (PTFE) self-lubricating seats ensure frictionless rotation between the open and closed positions. This makes it a low-maintenance component that will last a long time.


This product is commonly used in shut-off and control applications. It complies with RoHS (Restriction of Hazardous Substances) standards, so it contains only trace amounts of any harmful materials.

Features and Benefits

• Actuator included


• Threaded attachment type


• Chrome-plated brass ball material


• Nickel-plated brass body material


• Maximum working pressure of 40 bar


• Polytetrafluoroethylene (PTFE) seal material


• Thread size of 3/4 in


• British Standard Pipe Taper (BSPT) thread standard


• British Standard Pipe (BSP) threaded connection of 3/4 in

Datasheet
