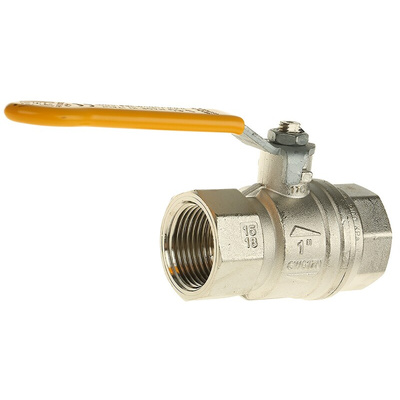

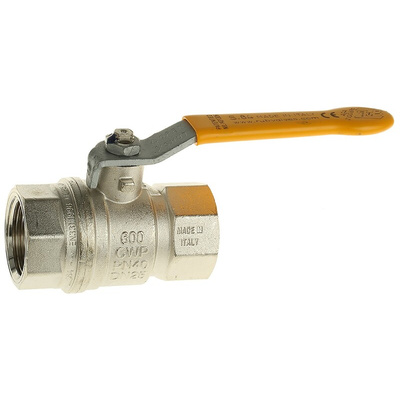

RS PRO Nickel Plated Brass Full Bore, 2 Way, Ball Valve, BSPT 1in, 40bar Operating Pressure, Шаровой клапан

RS PRO Process Ball Valve 1 in

Choose this process ball valve from RS PRO when you need to open and close the flow of water, gas or oil in your systems. To reduce the risk of accidentally opening or closing the system when it should be in the opposite position, the open and shut positions are clearly indicated.


Thanks to the valve’s dual sealing mechanism, it can operate in more than one direction. It has self-lubricating ball seats made from polytetrafluoroethylene (PTFE) to eliminate friction as the ball rotates between the open and closed positions. This means the valve will last a long time with minimal need for maintenance.


This item is RoHS (Restriction of Hazardous Substances) compliant, so it contains only minimal levels of any harmful materials. You'll commonly find it used in control and shut-off applications in enclosed systems.

Features and Benefits

• Actuator included


• Threaded attachment type


• Chrome-plated brass ball material


• Nickel-plated brass body material


• Maximum working pressure of 40 bar


• Polytetrafluoroethylene (PTFE) seal material


• Thread size of 1 in


• British Standard Pipe Taper (BSPT) thread standard


• British Standard Pipe (BSP) threaded connection of 1 in
