RS PRO Nickel Plated Brass Full Bore, 2 Way, Ball Valve, BSPT 38.1mm, 40bar Operating Pressure, Шаровой клапан

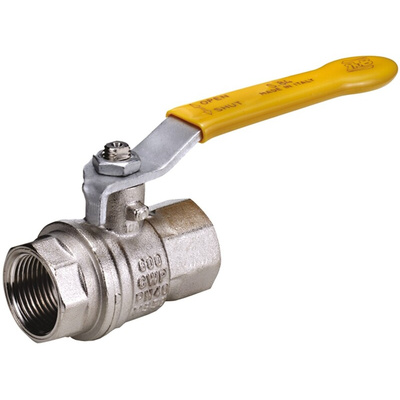

RS PRO Process Ball Valve 1-1/2in

Need a solution to easily open and close the flow of oil, gas or water in your systems? Choose this process ball valve from our trusted RS PRO range to manage flow in your enclosed applications.


The valve is easy to install thanks to a dual sealing mechanism that allows it to operate in multiple directions. The polytetrafluoroethylene (PTFE) ball seats are self-lubricated to minimise friction as the ball rotates between positions, reducing maintenance and extending the product's lifespan. For ease of use, the handle is clearly labelled with the open and shut positions to prevent errors during operation.


This product conforms to RoHS (Restriction of Hazardous Substances) standards, meaning it contains only trace amounts of any harmful materials. It's commonly found in control and shut-off applications.

Features and Benefits

• Actuator included


• Threaded attachment type


• Chrome-plated brass ball material


• Nickel-plated brass body material


• Maximum working pressure of 40 bar


• Polytetrafluoroethylene (PTFE) seal material


• Thread size of 1-1/2 in


• British Standard Pipe Taper (BSPT) thread standard


• British Standard Pipe (BSP) threaded connection of 1-1/2 in
