7TAG009660R0023 TC5344A-NDT, Thomas & Betts Self Adhesive Blue Cable Tie Mount 19.05 mm x 19.05mm, 3.5mm Max. Cable Tie Width

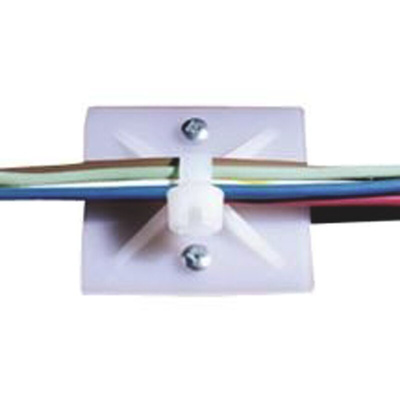

Thomas & Betts Cable Tie 4 Way Detectable Mounting Base 19.1 x 19.1mm

Thomas & Betts' 4-way detectable mounting base, 19.1 x 19.1 mm, is for use with cable ties up to 30 lb (13.6 kg). Its design eliminates errors that might otherwise occur in aligning mounting base orientation with wire bundle direction. The mounting base can be fixed with adhesive or with screws, depending on application. The Nylon 6.6 version is available in a bag of 1000 ( 812-5848 ) or 100 ( 812-5835 ). The Polypropylene version is available in a bag of 100 ( 812-5839 ).

Detectable with metal and x-ray detection equipment
Dimensions 0.75 x 0.75 in (19.1 x 19.1 mm)
Accommodates cable tie up to 0.14 in (3.5mm) wide
Temperature range -40°C to +85°C
Flammability rating UL 94 V-2
Halogen-free
Silicone-free

Mounting Base Installation Instructions

Detectable Mounting Bases Drawing

4 Way Mounting Base Data Sheet
