TC347A-NDT, Thomas & Betts Self Adhesive Blue Cable Tie Mount 28.58 mm x 28.58mm, 7.62mm Max. Cable Tie Width

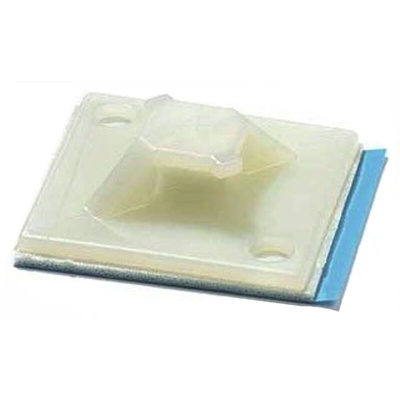

Thomas & Betts Cable Tie 2 Way Detectable Mounting Base 29 x 29mm

Thomas & Betts' 2-way detectable mounting base 29 x 29mm can be used as a 4-way entry when used with ties up to 4.8mm wide, because of the separation located on the ceiling of the slot. The mounting base can be fixed with adhesive or with screws, depending on application. The Nylon 6.6 version is available in a bag of 1000 ( 812-5854 ) or 100 ( 812-5841 ). The Polypropylene version is available in a bag of 100 ( 812-5845 ).

Detectable with metal and x-ray detection equipment
Dimensions 1.14 x 1.14 in (29 x 29 mm)
Accommodates cable tie up to 0.3 in (7.6mm) wide
Temperature range -40°C to +85°C
Flammability rating UL 94 V-2
Halogen-free
Silicone-free

Mounting Base Installation Instructions

Detectable Mounting Bases Drawing

Mounting Base TC347A-NDT Data Sheet
