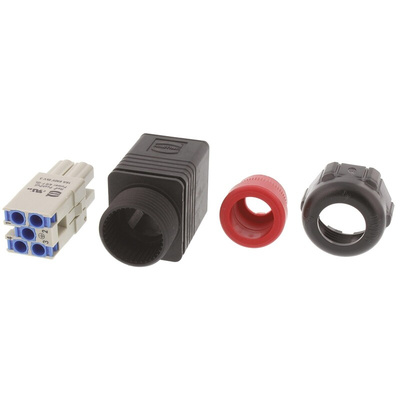

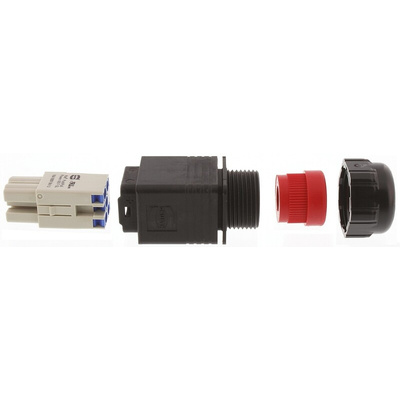

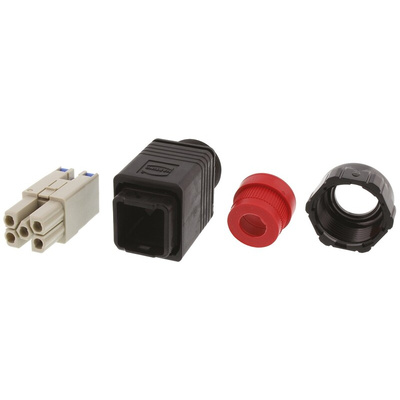

09352320423, HARTING Connector Set, 5 Way, 16A, Male, Han Push Pull, 690 V

Harting PushPull Power 4/0 Connectors and Housings, 4 Pole plus Earth

Harting PushPull Power 4/0 connectors and housings with clamping range of 9-13mm, featuring Han-Quick Lock termination technology which can be field assembled without the need for special tools and also standard crimp terminal connectors versions, 5 poles with a rating of 230/400V, 16A. Connector contacts must be ordered separately for standard crimp terminal types.

IP rated to IP67 once mated
4 pole plus earth contact layout
Operating temperature range -40 to +80 °C
Over 500 mating cycles

Note

Quick lock variants are: 812-5911 , 812-5895 . Standard versions 812-5902 , 812-5891

Approvals

IEC 61 076-3-117 , IEC 61 076-3-118

Harting PushPull Power Connectors

Harting PushPull Power 4-0 Connectors, Plastic
