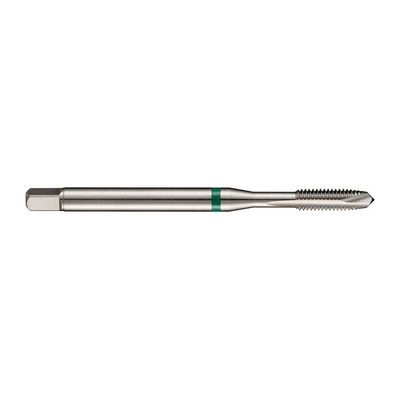

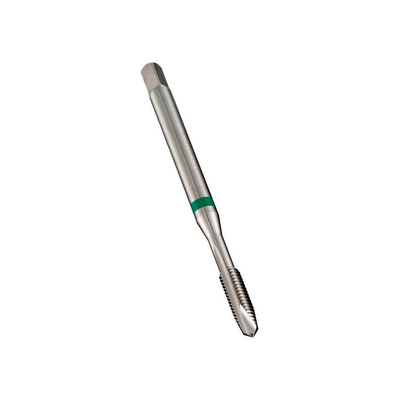

E471M8, Dormer Threading Tap, M8 Thread, 1.25mm Pitch, Metric Standard, Machine Tap, Метчик

E471 Spiral Point Green Shark Metric Taps

Dormer Shark Line Green Spiral Point Taps for Non-Ferrous materials. Constructed from premium grade High Speed Cobalt (HSS-E-PM) for increased hardness and improved edge strength.

Bright attractive finish with a treated edge for outstanding performance in a wide range of non-ferrous materials
Excellent performance in Brass and Copper
High wear resistance and low material adhesion for less swarf build up and increased productivity
Back tapered for faster, easier chip evacuation

Dormer Threading Tap, M8 Thread, 1.25mm Pitch - E471M8

This is a high-performance machine tap designed for threading both blind and through holes in specific materials. It is manufactured from a special powder metallurgy tool steel, ensuring unbeatable toughness, edge strength, and wear resistance. With its unique features, this tap provides problem-free threading and improved accuracy.

Features & Benefits

• Constructed from premium-grade powdered metal cobalt high-speed steel (M35), the E471M8 tap offers exceptional toughness and wear resistance
• The tap design significantly reduces axial forces, enhancing thread accuracy
• By minimizing torque, this tap reduces machine wear and the risk of chipping or breakage
• The special flute geometry prevents swarf nesting, reducing the risk of re-cutting swarf during reversal
• The Yellow, Red, and Blue Shark spiral flute taps feature an edge treatment that increases strength and minimises micro-chipping on the cutting edges, improving overall performance and tool life

Applications

• Ideal for threading non-ferrous materials such as brass and bronze
• Suitable for continuous holes with a depth of 2.5 times the diametre (2.5xD)

What materials can I use the E471M8 tap for?

The E471M8 tap is excellent for threading non-ferrous materials, including brass and bronze.

What is the recommended tapping depth for this tap?

The recommended tapping depth is 35 mm (2.5 times the diametre).

Does the E471M8 tap work well for blind holes?

Yes, it is specifically designed for threading both blind and through holes.

Engineering Taps - Spiral Point (Dormer)

Precision HSS taps designed to produce repeatable tolerance threads in most engineering materials. Suitable for medium/high rate production.

Spiral Point
7° cutting rake
Bright surface treatment

E471 Data Sheet

Catalogue - Threading
