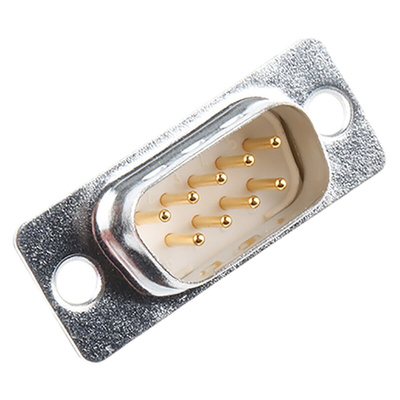

F09P0G2 / 1727040160, FCT from Molex F 9 Way Panel Mount D-sub Connector Plug, 2.84mm Pitch, Разъем

FCT - Solder Cup D-sub Connector

A range of D-Sub Plug and Socket connectors with 20 AWG Solder Pot termination. These D-Sub Plug and Socket connectors have gold plated machined contacts with a performance class 2 (200 cycles). Shell material is Tin plated steel with the mounting holes having a diameter of 3.1 mm and the Insert material is white Polyester UL 94 V-0 rated for these D-Sub Plug and Socket connectors.
For Hoods see stock number 812-6245 typical.

FCT from Molex Panel Mount D-sub Connector Plug, 20AWG, 5A Current Rating - F Series - F09P0G2 / 1727040160

Easily link external devices to your computers using this FCT from Molex D-sub connector plug. Constructed with copper alloy contacts, the unit is conductive and has a low electrical resistance, so you can rest assured of steady signal transmission. Its steel shell provides resistance to impact and corrosion, making it suitable for use in industrial environments. This plug has a current rating of 7.5A per contact, so you can use it for heavy-duty applications with a high current-consumption capacity.

• Shielded to prevent electromagnetic interference for noiseless signal transmission

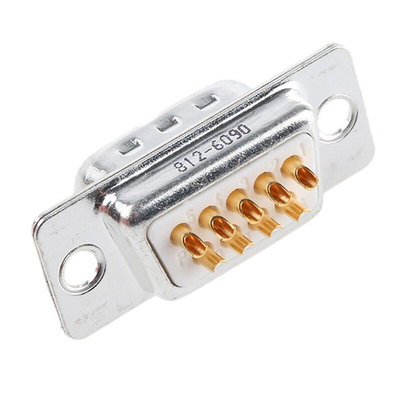

• Solder cup termination style for permanent fastening to the connector
• Mating interface pitch of 2.84mm provides enough space between contacts to prevent short-circuit faults

Applications

• PLCs
• Office printers

Is this plug finger-safe?

Yes, it has an ingress protection rating of IP20, which indicates that it's protected from objects larger than 12mm in size, including your fingers.

FCT- D-Sub Connectors

FCT D-Sub Miniature Connectors Catalogue Pages

Datasheet - F09P0G2 / 1727040160
