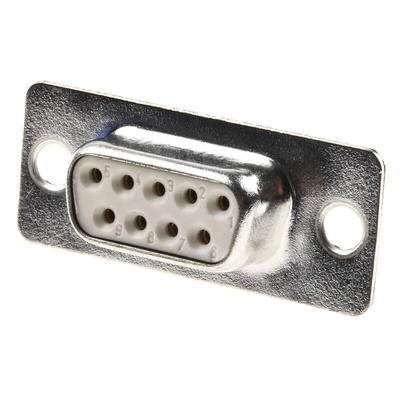

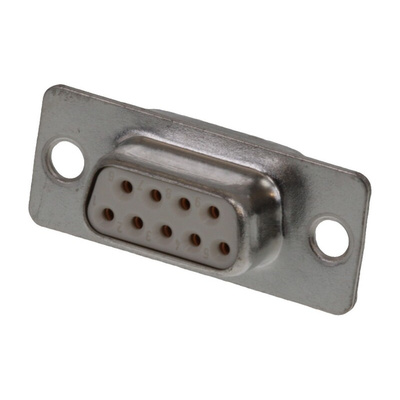

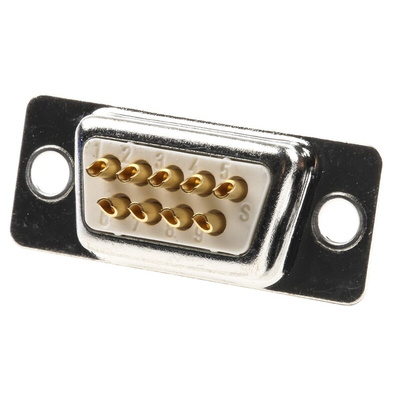

F09S0G2 / 1727040163, FCT from Molex F 9 Way Panel Mount D-sub Connector Socket, 2.84mm Pitch, Разъем

FCT - Solder Cup D-sub Connector

A range of D-Sub Plug and Socket connectors with 20 AWG Solder Pot termination. These D-Sub Plug and Socket connectors have gold plated machined contacts with a performance class 2 (200 cycles). Shell material is Tin plated steel with the mounting holes having a diameter of 3.1 mm and the Insert material is white Polyester UL 94 V-0 rated for these D-Sub Plug and Socket connectors.
For Hoods see stock number 812-6245 typical.

FCT from Molex D-Sub Connector, 7.5A Current Rating, 2.84mm Pitch - F Series - F09S0G2 / 1727040163

Want to minimise mechanical strain in your electrical system? Choose this female D-sub connector by FCT from Molex. It has 9 contacts for easy compatibility with commonly used 9-pin plugs. A maximum current rating of 7.5A per contact means you can use this device in medium-powered systems. Installation is simple thanks to its panel mounting style, straight body orientation and solder termination.

• Gold-over-nickel-plated copper alloy contacts for low resistance and high conductivity to ensure an effective connection
• Durable steel housing for resistance to impact and corrosion
• Wide operating temperature range of -55°C to +125°C for use in harsh environments

Applications

• Electrical systems
• Energy solutions

How durable is this connector?

This unit has a robust lifespan of up to 200 mating cycles, so it can withstand long-term use.

FCT- D-Sub Connectors

Datasheet

Datasheet - F09S0G2 / 1727040163
