F-GSCH1/5SN / 1727040093, FCT from Molex, F-GSCH Series Jack Screw For Use With D-Sub Connector

FCT - D-Sub Accessories

A range of D-Sub Connector Accessories including:
Dust Caps F1042-XP for Plugs and Sockets
Slide Locks F-GV-X
Female Screwlocks F-GSCH1/5
Screw Lock F-SCHV
Thumb Screw FRS1/5

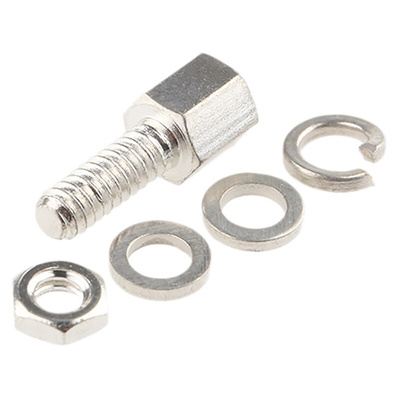

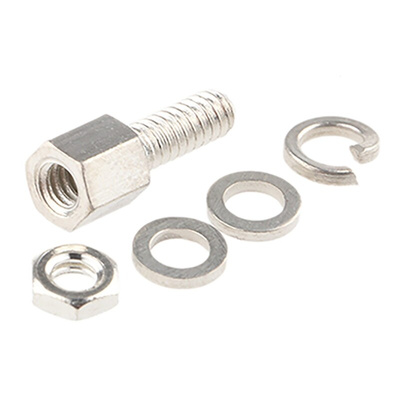

FCT from Molex Female Screw Lock For Use With D-Sub Connector, UNC 4-40 Thread - F-GSCH Series - F-GSCH1/5SN / 1727040093

Use this female screw lock assembly by FCT from Molex to hold a D-sub connector hood securely in place. It's compatible with the Molex F-GSCH range of D-subs, which are commonly used for signal transmission, communications and power distribution applications. The unit has superior resistance to corrosion thanks to its tin-plating and steel material, making it suitable for use in harsh settings. These features also give the assembly low transfer resistance for the optimal flow of power and signals.

• Low halogen to reduce the risk of emitting harmful fumes in the event of a fire
• Light weight of 1.1g so adds no pulling strain on a connector
• No need for frequent re-tightening to cut down on maintenance time

Applications

• Measurement control devices
• Testing instruments
• Security and surveillance

What's a D-sub connector?

A D-sub connector provides a secure and reliable semi-permanent electrical path between two devices, like a printer and a PC. The Molex range of connectors offers high current-carrying capacity combined with low resistance and durability for superior system performance.

FCT- D-Sub Connectors

Female Screw Lock Dimensional Drawing

Datasheet - F-GSCH1/5SN / 1727040093
