FL09P7-K120 / 1727040009, FCT from Molex FL 9 Way Cable Mount D-sub Connector Plug, 2.84mm Pitch

FCT - Empty Shell D-Sub Crimp Connector

A range of Empty Shell D-Sub Crimp Connectors from FCT.

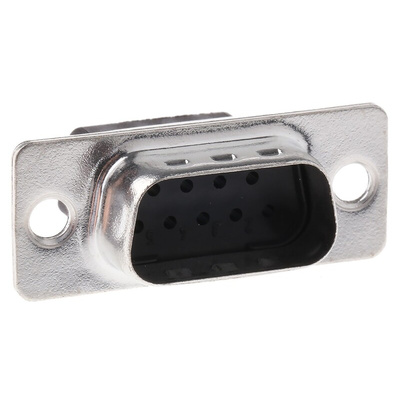

FCT from Molex Cable Mount D Sub Connector Plug, 5A Current Rating, 9 Contacts - FL Series - FL09P7-K120 / 1727040009

This FCT from Molex connector plug creates a link between two components on your circuit board. It's male-configured with nine contacts that are insulated from each other, so they're protected from heat damage. The unit is made from durable steel that's resistant to impact and corrosion, making it ideal for use in tough industrial environments. For versatility, the contacts can be connected using AWG sizes ranging from 28 to 18. You can rely on this connector for long-lasting use thanks to the crimping termination method that ensures secure wire attachments.

• Straight body orientation for easy integration into your system
• Compact dimensions of 30.8 (L) x 6 (W) x 12.5mm (D) for installation in setups with limited space

Applications

• Computing equipment
• Printers

What mounting type does this plug need?

This plug should be cable-mounted to save space in busy applications.
