24020030010, HARTING DIN Rail Mount Ethernet Switch, 3 RJ45 Ports, 10/100Mbit/s Transmission, 24V dc, Коммутатор

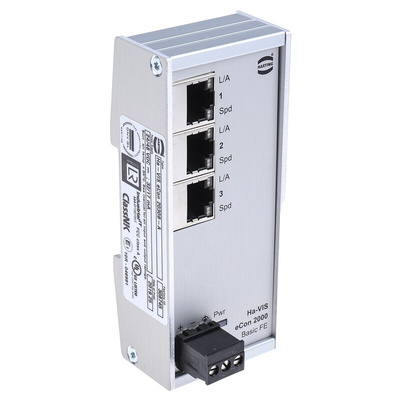

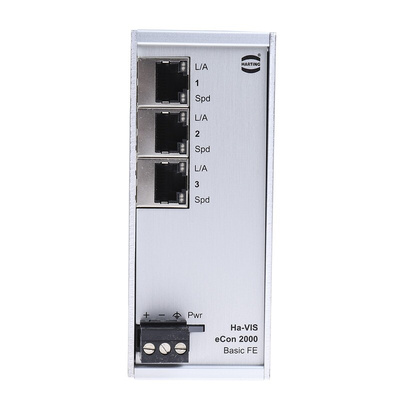

HARTING Unmanaged Ethernet Switch

The HARTING unmanaged Ethernet switch has 3, RJ45 port and DIN rail mounting. It has a supply voltage rating between 24VDC to 48VDC. The Ha-VIS eCon 2000 series unmanaged Ethernet switch offers a plug and play solution. The switches have a flat construction and frontal port mounting for installation into space-restricted or hard-to-reach applications. The PoE and fibre-optic ports are also available.

Features and Benefits

3.13 MTBF (in million hours)

Non-blocking fast Ethernet switching architecture
Auto-negotiation
Auto-polarity and auto-MDI(X) provide the user with a plug and play solution
Reverse polarity and surge protection
Transfer length of 100m via twisted pair Cat. 5 with a 10/100MB/second transfer rate
Reduced energy consumption thanks to energy-efficient Ethernet
Anodised aluminium housing
Operating temperature ranges between 0°C and 55°C

Applications

Industrial network infrastructure
Machinery and robotics
Automation
Transportation
Wind and solar energy
Shipbuilding

Certifications

CE certified
FCC CFR 47 part 15
DNV
GL
ABS
cUL US 508 listed
NK
ABB IIT
IEC 60068-2-6 vibration
IEC 60068-2-6 resonance search
IEC 60068-2-27 shock test
IEEE 802.3
IP30 rated

Fast Commercial Switch, RJ45 3 Port Drawing

Ha-VIS_eCon_2000_3000 - Type Approval Certificate
