24020062110, Harting Ethernet Switch, 6 RJ45 port, 24V dc, 10 Mbit/s, 100 Mbit/s Transmission Speed, DIN Rail Mount, Коммутатор

8128831
Номер производителя: 24020062110Производитель: HARTING
Цена за шт.
122256.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

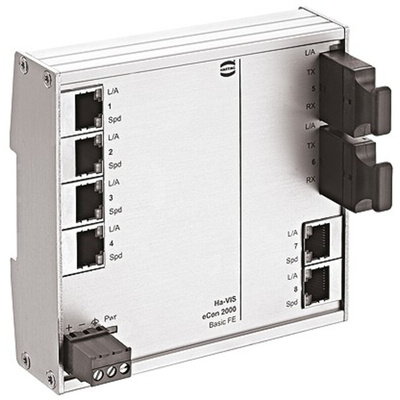

Ha-VIS eCon 2000 Series

The Ha-VIS eCon 2000 family of unmanaged Ethernet Switches offer a plug & play solution for DIN rail mounted connectivity. One main benefit of the eCon 2000 series is the extremely flat construction and frontal port mounting of the switches, allowing for installation into space-restricted or hard-to-reach applications. PoE and fibre-optic ports are also available

Features of the eCon 2000 Series
Non-Blocking fast Ethernet switching architecture, in accordance with IEEE 802.3
Auto-Negotiation, auto-polarity and auto-MDI(X) provide the user with a plug & play solution
Reverse polarity and surge protection
Power supply suitable for both 24/48V DC
Transfer length of 100m via twisted pair Cat. 5 with a 10/100Mbit/s transfer rate
Commercial temperature range of 0 °C to +55°C, industrial temperature range of -40°C to +70°C
Reduced energy consumption thanks to energy-efficient Ethernet
Anodised Aluminium housing


Applications:
Industrial network infrastructure
Machinery & Robotics
Automation
Transportation
Wind & Solar energy
Shipbuilding

Техническая спецификация
pdfFast Commercial Switch RJ45 6 Port Drawing
pdfHa-VIS_eCon_2000_3000 - Type Approval Certificate
Вес:
480гр
Высота:
113.5мм
Глубина:
27.3мм
Дальность передачи:
100м
Максимальное напряжение питания:
60В пост. тока
Минимальное напряжение питания:
9В пост. тока
Монтаж:
DIN Rail
Номинальное напряжение питания:
24В пост. тока
Порты RJ45:
6
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
0°C
Размеры:
120 x 27.3 x 113.5мм
Скорость передачи:
10 Мбит/с, 100 Мбит/с
Ширина:
120мм
