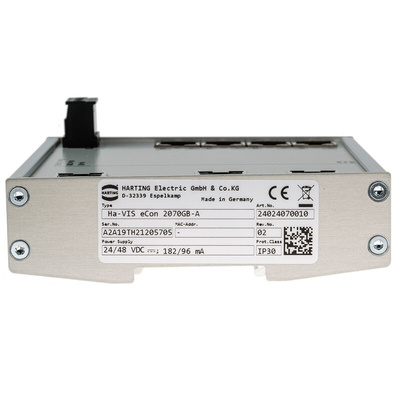

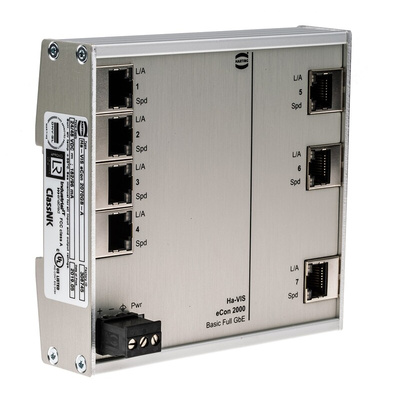

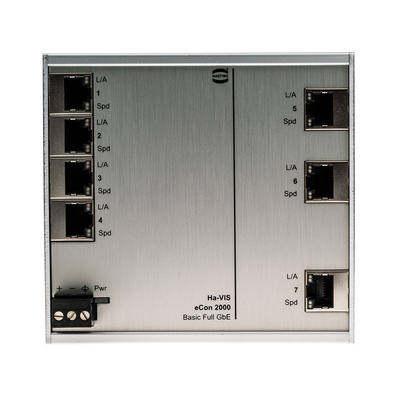

24024070010, HARTING DIN Rail Mount Ethernet Switch, 7 RJ45 Ports, 10/100/1000Mbit/s Transmission, 48V dc, Коммутатор

HARTING Ethernet Switch

The HARTING RJ45 7-port DIN rail mount Ethernet switch. It has an electrical rating of 24VDC to 48VDC. The Ha-VIS eCon 2000 series full Gigabit family of unmanaged Ethernet switch is equipped with up to 7 Gigabit Ethernet ports and allow for cost-efficient and quick expansion and/or reconstruction of network infrastructures with high bandwidth requirements. In this, all variants support extra-long Ethernet frames (jumbo frames). The switches work as power sourcing equipment (PSE) and are capable of simultaneously providing the full PoE output of 34.2watts on up to four ports.

Features and Benefits

Energy supply of up to 4 terminal devices via PoE (137 watts) in accordance with IEEE 802.3at
Support of jumbo frames (10 kB)
Surge protection and reverse polarity protection
Minimum energy consumption due to energy-efficient Ethernet
Housing width 120mm
Frame size 10kBytes
MAC table size 8k entries
Packet buffer size 1Mbit

Applications

Machinery & Robotics
Automation Industrial
Network infrastructures
Wind Energy
Solar Energy Transportation Shipbuilding

Certifications

CE certified
IEC 60068-2-6 Vibration
IEC 60068-2-6 Resonance search
IEC 60068-2-27 Shock test
