24030080010, HARTING DIN Rail Mount Ethernet Switch, 8 RJ45 Ports, 10/100Mbit/s Transmission, 48V dc, Коммутатор

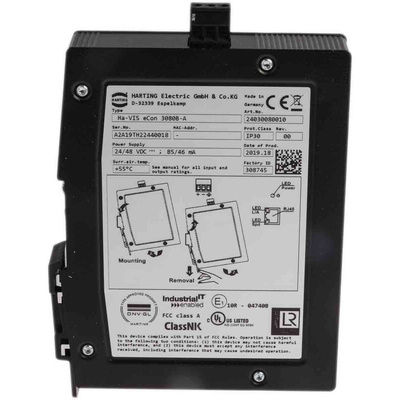

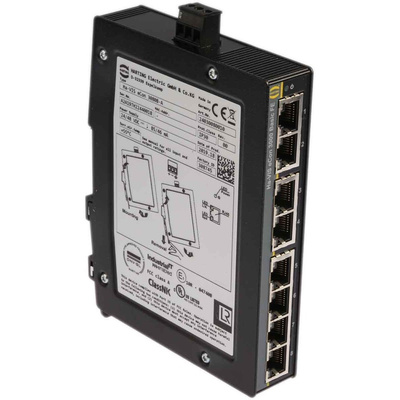

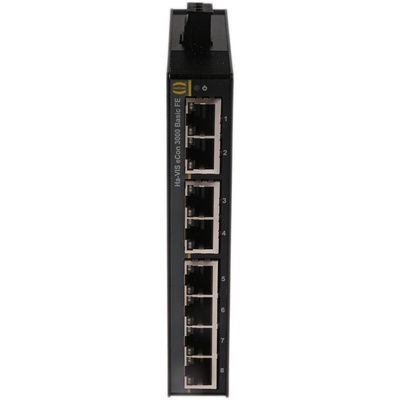

HARTING Unmanaged Ethernet Switch

The HARTING unmanaged Ethernet switch has 8, RJ45 ports and DIN rail mounting. It has a supply voltage of 24VDC to 48VDC. The Ha-VIS eCon 3000 series full GB family of unmanaged Ethernet switch is equipped with up to 16GB Ethernet ports. It facilitates cost-efficiency, quick expansion, and/or reconstruction of network infrastructures with high bandwidth requirements. All variants support extra-long Ethernet frames (jumbo frames). Owing to the extremely flat design, these switches can be accommodated in installations where space is restricted towards the cable connection at the front. Automatic detection of the transmission rate (auto-negotiation) and the wiring of the twisted pair data cable (auto-polarity and auto-MDI(X)) allow for simple plug and play.

Features and Benefits

2.16 MTBF (in million hours)

Full gigabit Ethernet, non-blocking switch architecture according to IEEE 802.3
Support of jumbo frames (10KB)
Surge protection and reverse polarity protection
Minimum energy consumption due to energy-efficient Ethernet
Housing width 25mm
Frame size 1.5KB
MAC table size 1k entries
Packet buffer size 448KB
Operating temperature ranges between 0°C and 55°C

Applications

Machinery and robotics
Automation industrial
Network infrastructures
Wind energy
Solar energy-transportation shipbuilding

Certifications

CE certified
IEC 60068-2-6 Vibration
IEC 60068-2-6 Resonance search
IEC 60068-2-27 Shock test

Fast Commercial Switch, RJ45 8 Port Drawing

Ha-VIS_eCon_2000_3000 - Type Approval Certificate

Datasheet harting
